Low Profile Series

Low-profile rectangular connectors, including micro, standard and power/Ethernet forms. Each group has its own drawings and electrical/cable data.

Low Profile specifications

Wet-mate cycles: >500
Temperature (water): −4°C to +60°C
Temperature (air): −40°C to +60°C

Materials and operating conditions

Body material: Chloroprene rubber

Products

Bulkhead · 2-contact

FemaleLPBH2F

Female · LPBH2F. Bulkhead form with 2 contacts for the Low Profile Series.

Technical specifications

Parameter	Value
Model number	LPBH2F
Series	Low Profile (LP) Series
Configuration	Bulkhead (BH) — Female
Number of contacts / pins	2
Voltage rating	250 V DC/AC rms
Current per contact	5 A per contact (2–4 pin) / 4 A per contact (5–9 pin)
Maximum total current	10 A
Insulation resistance	>200 MΩ
Contact resistance	<0.01 Ω
Mated pressure rating	600 Bar (8,700 psi)
Open-face pressure rating	300 Bar (4,350 psi)
Rated depth (mated)	6,000 m (mated)
Wet-mate cycles	>500
Temperature (water)	−4°C to +60°C
Temperature (air)	−40°C to +60°C
Body design	Low-profile flat body — minimum drag
Body material	Chloroprene rubber
Shell material	316 Stainless Steel (Titanium on request)
Contacts	Gold-plated beryllium copper / brass
Locking sleeve	POM or Stainless Steel (mandatory before deployment)
O-ring seals	Nitrile
Cable jacket	Polyurethane (PUR) — customer-specified OD

FemaleLPBH2F

Female · LPBH2F. Bulkhead form with 2 contacts for the Low Profile Series.

Technical specifications

Parameter	Value
Model number	LPBH2F-V
Series	Low Profile (LP) Series
Configuration	Bulkhead (BH) — Female
Number of contacts / pins	2
Voltage rating	250 V DC/AC rms
Current per contact	5 A per contact (2–4 pin) / 4 A per contact (5–9 pin)
Maximum total current	10 A
Insulation resistance	>200 MΩ
Contact resistance	<0.01 Ω
Mated pressure rating	600 Bar (8,700 psi)
Open-face pressure rating	300 Bar (4,350 psi)
Rated depth (mated)	6,000 m (mated)
Wet-mate cycles	>500
Temperature (water)	−4°C to +60°C
Temperature (air)	−40°C to +60°C
Body design	Low-profile flat body — minimum drag
Body material	Chloroprene rubber
Shell material	316 Stainless Steel (Titanium on request)
Contacts	Gold-plated beryllium copper / brass
Locking sleeve	POM or Stainless Steel (mandatory before deployment)
O-ring seals	Nitrile
Cable jacket	Polyurethane (PUR) — customer-specified OD

MaleLPBH2M

Male · LPBH2M. Bulkhead form with 2 contacts for the Low Profile Series.

Technical specifications

Parameter	Value
Model number	LPBH2M
Series	Low Profile (LP) Series
Configuration	Bulkhead (BH) — Male
Number of contacts / pins	2
Voltage rating	250 V DC/AC rms
Current per contact	5 A per contact (2–4 pin) / 4 A per contact (5–9 pin)
Maximum total current	10 A
Insulation resistance	>200 MΩ
Contact resistance	<0.01 Ω
Mated pressure rating	600 Bar (8,700 psi)
Open-face pressure rating	300 Bar (4,350 psi)
Rated depth (mated)	6,000 m (mated)
Wet-mate cycles	>500
Temperature (water)	−4°C to +60°C
Temperature (air)	−40°C to +60°C
Body design	Low-profile flat body — minimum drag
Body material	Chloroprene rubber
Shell material	316 Stainless Steel (Titanium on request)
Contacts	Gold-plated beryllium copper / brass
Locking sleeve	POM or Stainless Steel (mandatory before deployment)
O-ring seals	Nitrile
Cable jacket	Polyurethane (PUR) — customer-specified OD

Dummy / protective · 2-contact

Connector formLPDC2F

LPDC2F. Dummy / protective form with 2 contacts for the Low Profile Series.

Technical specifications

Parameter	Value
Model number	LPDC2F
Series	Low Profile (LP) Series
Configuration	Dummy Connector (protective)
Number of contacts / pins	2
Voltage rating	N/A (no live contacts)
Current per contact	N/A
Maximum total current	N/A
Insulation resistance	N/A
Contact resistance	N/A
Mated pressure rating	600 Bar (8,700 psi)
Open-face pressure rating	300 Bar (4,350 psi)
Rated depth (mated)	6,000 m (mated)
Wet-mate cycles	>500
Temperature (water)	−4°C to +60°C
Temperature (air)	−40°C to +60°C
Body design	Low-profile flat body — minimum drag
Body material	Chloroprene rubber
Shell material	316 Stainless Steel (Titanium on request)
Contacts	None (dummy)
Locking sleeve	POM or Stainless Steel (mandatory before deployment)
O-ring seals	Nitrile
Cable jacket	Polyurethane (PUR) — customer-specified OD

Dummy / protective · 2-contact

Connector formLPDC2F

LPDC2F. Dummy / protective form with 2 contacts for the Low Profile Series.

Technical specifications

Parameter	Value
Model number	LPDC2F-V
Series	Low Profile (LP) Series
Configuration	Dummy Connector (protective)
Number of contacts / pins	2
Voltage rating	N/A (no live contacts)
Current per contact	N/A
Maximum total current	N/A
Insulation resistance	N/A
Contact resistance	N/A
Mated pressure rating	600 Bar (8,700 psi)
Open-face pressure rating	300 Bar (4,350 psi)
Rated depth (mated)	6,000 m (mated)
Wet-mate cycles	>500
Temperature (water)	−4°C to +60°C
Temperature (air)	−40°C to +60°C
Body design	Low-profile flat body — minimum drag
Body material	Chloroprene rubber
Shell material	316 Stainless Steel (Titanium on request)
Contacts	None (dummy)
Locking sleeve	POM or Stainless Steel (mandatory before deployment)
O-ring seals	Nitrile
Cable jacket	Polyurethane (PUR) — customer-specified OD

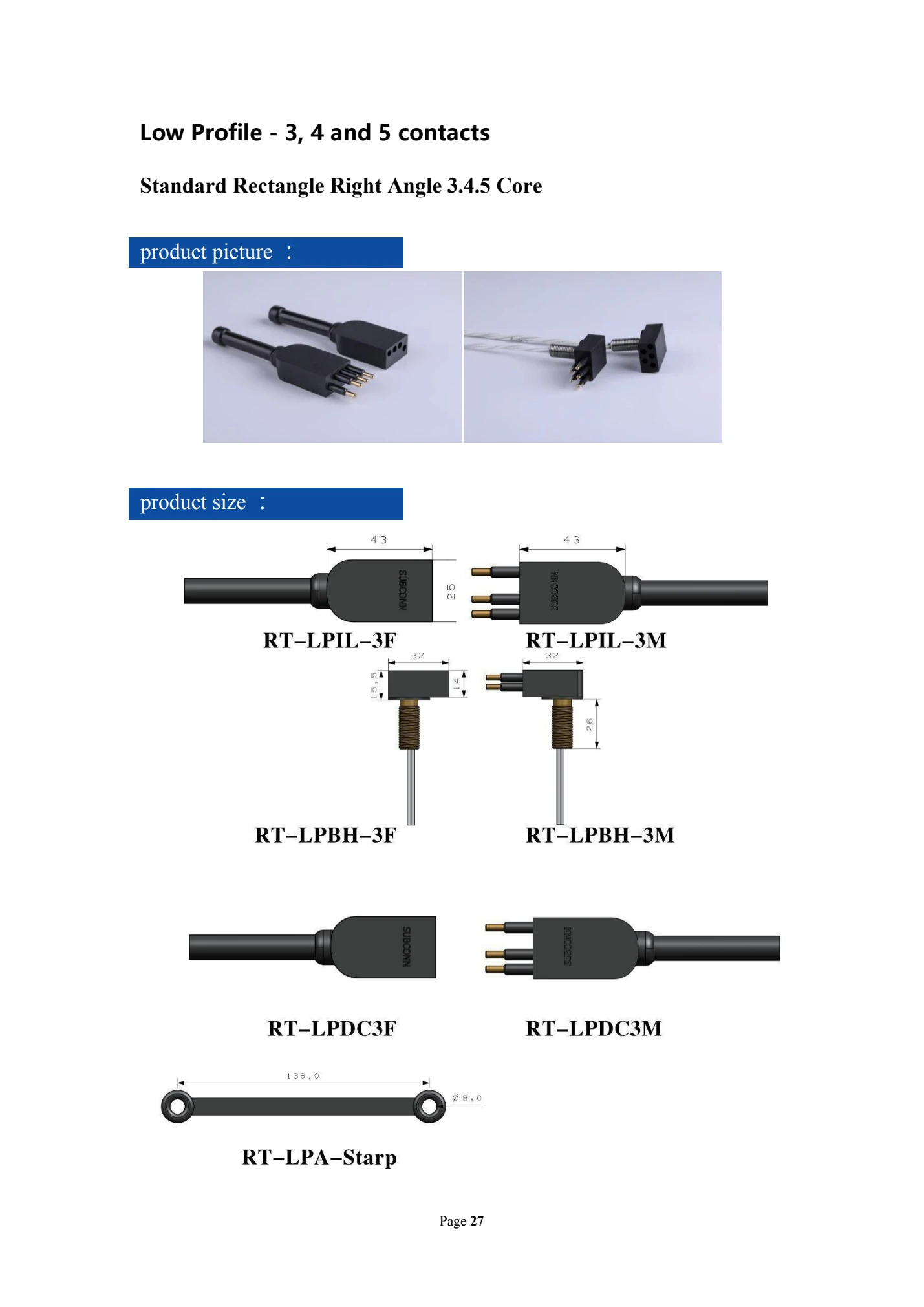

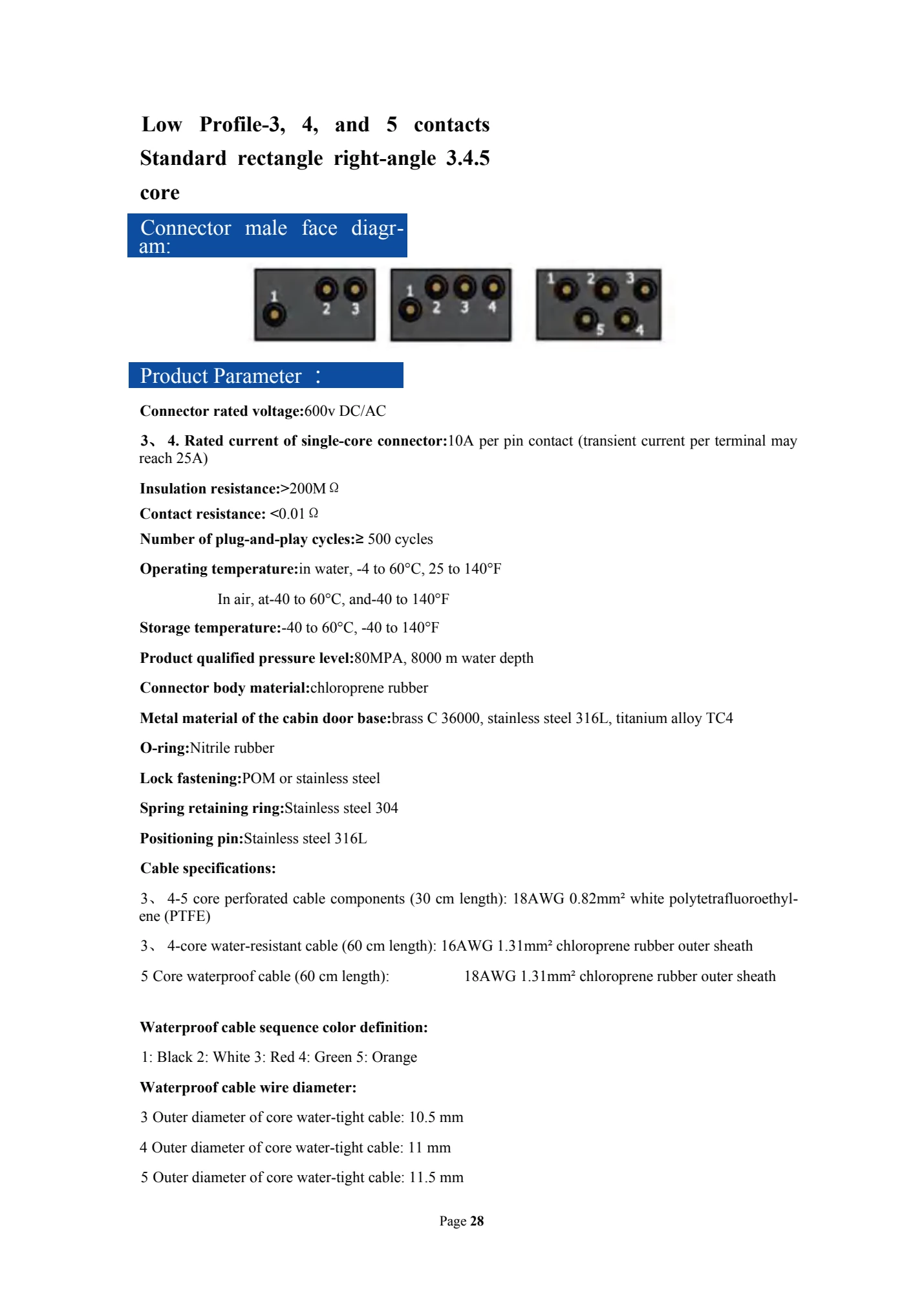

In-line · 4-contact

FemaleLPIL4F

MaleLPIL4M

Female · LPIL4F. In-line form with 4 contacts for the Low Profile Series.

Male · LPIL4M. In-line form with 4 contacts for the Low Profile Series.

Technical specifications

Parameter	Female LPIL4F	Male LPIL4M
Model number	LPIL4F	LPIL4M
Series	Low Profile (LP) Series
Configuration	In-Line (IL) — Female	In-Line (IL) — Male
Number of contacts / pins	4
Voltage rating	250 V DC/AC rms
Current per contact	5 A per contact (2–4 pin) / 4 A per contact (5–9 pin)
Maximum total current	20 A
Insulation resistance	>200 MΩ
Contact resistance	<0.01 Ω
Mated pressure rating	600 Bar (8,700 psi)
Open-face pressure rating	300 Bar (4,350 psi)
Rated depth (mated)	6,000 m (mated)
Wet-mate cycles	>500
Temperature (water)	−4°C to +60°C
Temperature (air)	−40°C to +60°C
Body design	Low-profile flat body — minimum drag
Body material	Chloroprene rubber
Shell material	316 Stainless Steel (Titanium on request)
Contacts	Gold-plated beryllium copper / brass
Locking sleeve	POM or Stainless Steel (mandatory before deployment)
O-ring seals	Nitrile
Cable jacket	Polyurethane (PUR) — customer-specified OD

Bulkhead · 4-contact

FemaleLPBH4F

MaleLPBH4M

Female · LPBH4F. Bulkhead form with 4 contacts for the Low Profile Series.

Male · LPBH4M. Bulkhead form with 4 contacts for the Low Profile Series.

Technical specifications

Parameter	Female LPBH4F	Male LPBH4M
Model number	LPBH4F	LPBH4M
Series	Low Profile (LP) Series
Configuration	Bulkhead (BH) — Female	Bulkhead (BH) — Male
Number of contacts / pins	4
Voltage rating	250 V DC/AC rms
Current per contact	5 A per contact (2–4 pin) / 4 A per contact (5–9 pin)
Maximum total current	20 A
Insulation resistance	>200 MΩ
Contact resistance	<0.01 Ω
Mated pressure rating	600 Bar (8,700 psi)
Open-face pressure rating	300 Bar (4,350 psi)
Rated depth (mated)	6,000 m (mated)
Wet-mate cycles	>500
Temperature (water)	−4°C to +60°C
Temperature (air)	−40°C to +60°C
Body design	Low-profile flat body — minimum drag
Body material	Chloroprene rubber
Shell material	316 Stainless Steel (Titanium on request)
Contacts	Gold-plated beryllium copper / brass
Locking sleeve	POM or Stainless Steel (mandatory before deployment)
O-ring seals	Nitrile
Cable jacket	Polyurethane (PUR) — customer-specified OD

Dummy / protective · 4-contact

FemaleLPDC4F

MaleLPDC4M

Female · LPDC4F. Dummy / protective form with 4 contacts for the Low Profile Series.

Male · LPDC4M. Dummy / protective form with 4 contacts for the Low Profile Series.

Technical specifications

Parameter	Female LPDC4F	Male LPDC4M
Model number	LPDC4F	LPDC4M
Series	Low Profile (LP) Series
Configuration	Dummy Connector (protective)
Number of contacts / pins	4
Voltage rating	N/A (no live contacts)
Current per contact	N/A
Maximum total current	N/A
Insulation resistance	N/A
Contact resistance	N/A
Mated pressure rating	600 Bar (8,700 psi)
Open-face pressure rating	300 Bar (4,350 psi)
Rated depth (mated)	6,000 m (mated)
Wet-mate cycles	>500
Temperature (water)	−4°C to +60°C
Temperature (air)	−40°C to +60°C
Body design	Low-profile flat body — minimum drag
Body material	Chloroprene rubber
Shell material	316 Stainless Steel (Titanium on request)
Contacts	None (dummy)
Locking sleeve	POM or Stainless Steel (mandatory before deployment)
O-ring seals	Nitrile
Cable jacket	Polyurethane (PUR) — customer-specified OD

In-line · 5-contact

FemaleLPIL5F

MaleLPIL5M

Female · LPIL5F. In-line form with 5 contacts for the Low Profile Series.

Male · LPIL5M. In-line form with 5 contacts for the Low Profile Series.

Technical specifications

Parameter	Female LPIL5F	Male LPIL5M
Model number	LPIL5F	LPIL5M
Series	Low Profile (LP) Series
Configuration	In-Line (IL) — Female	In-Line (IL) — Male
Number of contacts / pins	5
Voltage rating	250 V DC/AC rms
Current per contact	5 A per contact (2–4 pin) / 4 A per contact (5–9 pin)
Maximum total current	20 A
Insulation resistance	>200 MΩ
Contact resistance	<0.01 Ω
Mated pressure rating	600 Bar (8,700 psi)
Open-face pressure rating	300 Bar (4,350 psi)
Rated depth (mated)	6,000 m (mated)
Wet-mate cycles	>500
Temperature (water)	−4°C to +60°C
Temperature (air)	−40°C to +60°C
Body design	Low-profile flat body — minimum drag
Body material	Chloroprene rubber
Shell material	316 Stainless Steel (Titanium on request)
Contacts	Gold-plated beryllium copper / brass
Locking sleeve	POM or Stainless Steel (mandatory before deployment)
O-ring seals	Nitrile
Cable jacket	Polyurethane (PUR) — customer-specified OD

Bulkhead · 5-contact

FemaleLPBH5F

MaleLPBH5M

Female · LPBH5F. Bulkhead form with 5 contacts for the Low Profile Series.

Male · LPBH5M. Bulkhead form with 5 contacts for the Low Profile Series.

Technical specifications

Parameter	Female LPBH5F	Male LPBH5M
Model number	LPBH5F	LPBH5M
Series	Low Profile (LP) Series
Configuration	Bulkhead (BH) — Female	Bulkhead (BH) — Male
Number of contacts / pins	5
Voltage rating	250 V DC/AC rms
Current per contact	5 A per contact (2–4 pin) / 4 A per contact (5–9 pin)
Maximum total current	20 A
Insulation resistance	>200 MΩ
Contact resistance	<0.01 Ω
Mated pressure rating	600 Bar (8,700 psi)
Open-face pressure rating	300 Bar (4,350 psi)
Rated depth (mated)	6,000 m (mated)
Wet-mate cycles	>500
Temperature (water)	−4°C to +60°C
Temperature (air)	−40°C to +60°C
Body design	Low-profile flat body — minimum drag
Body material	Chloroprene rubber
Shell material	316 Stainless Steel (Titanium on request)
Contacts	Gold-plated beryllium copper / brass
Locking sleeve	POM or Stainless Steel (mandatory before deployment)
O-ring seals	Nitrile
Cable jacket	Polyurethane (PUR) — customer-specified OD

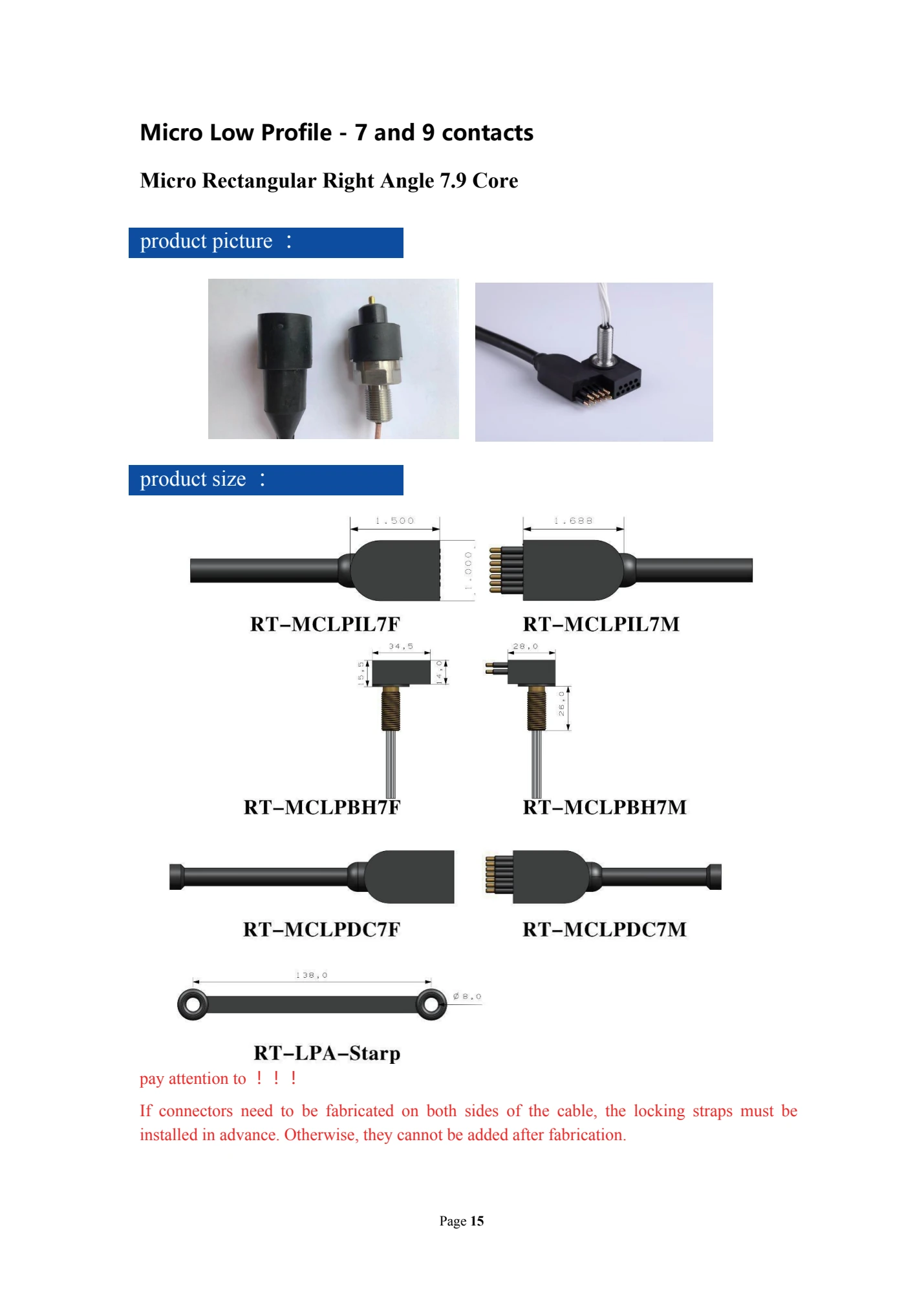

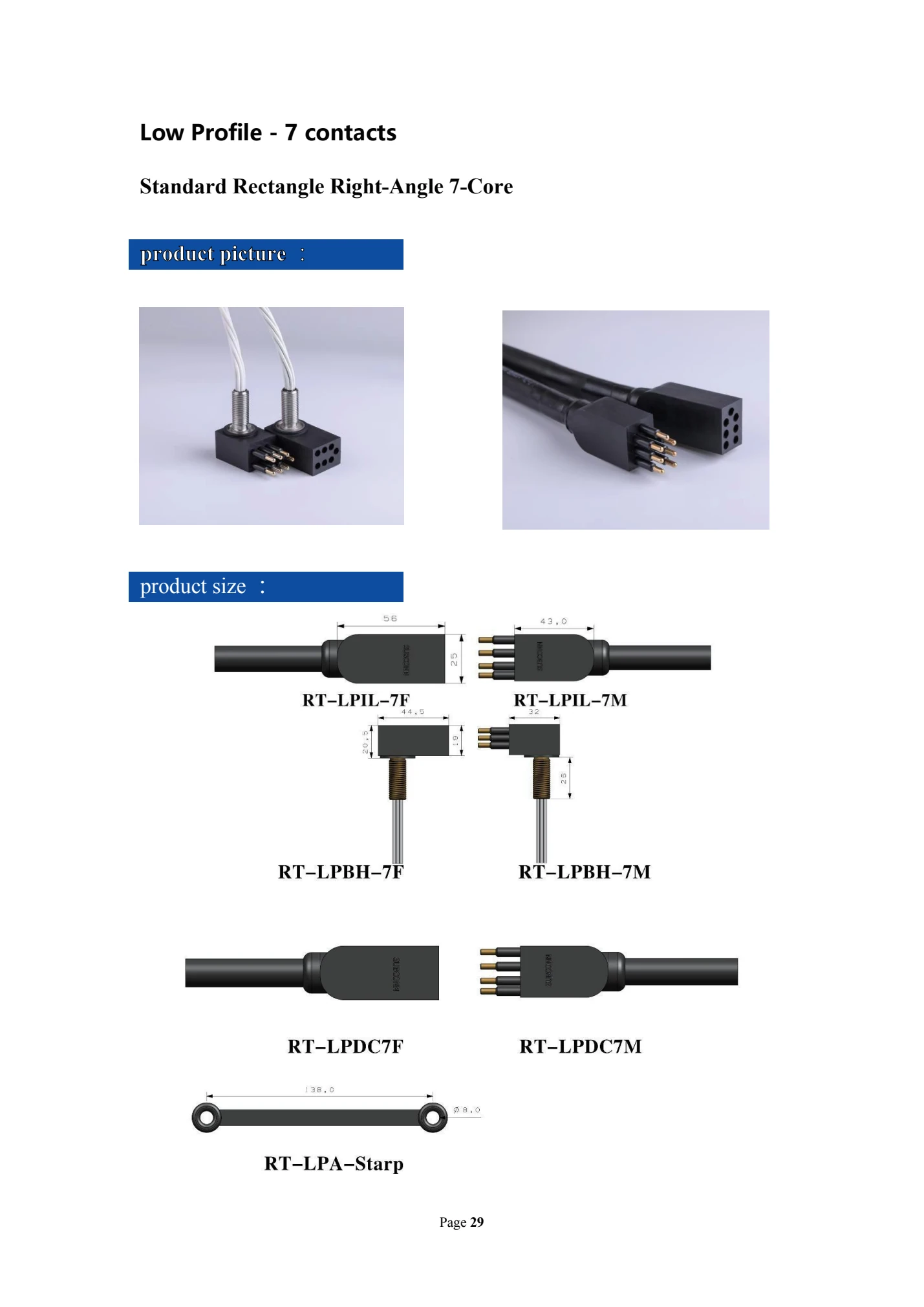

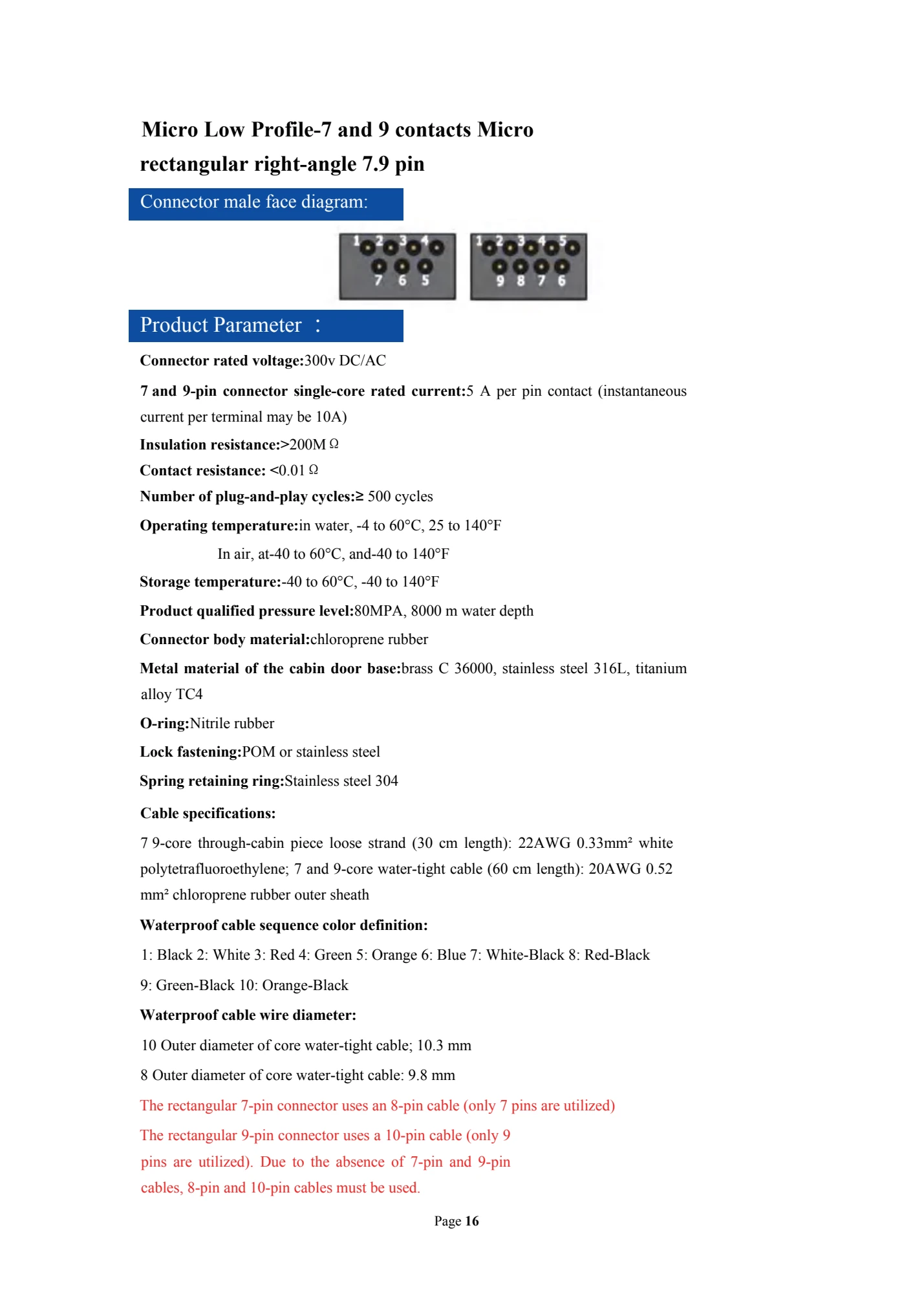

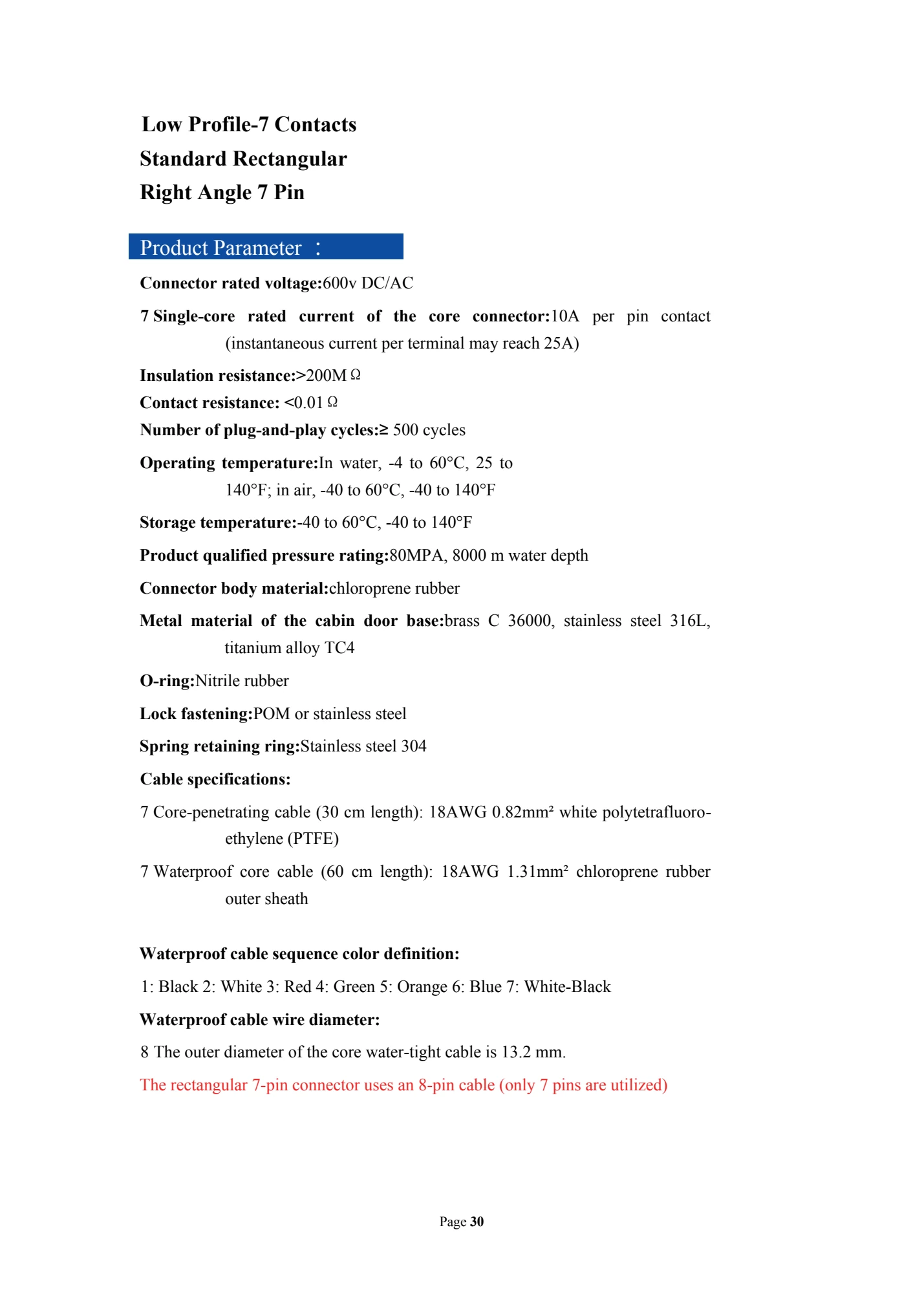

In-line · 7-contact

FemaleLPIL7F

MaleLPIL7M

Female · LPIL7F. In-line form with 7 contacts for the Low Profile Series.

Male · LPIL7M. In-line form with 7 contacts for the Low Profile Series.

Technical specifications

Parameter	Female LPIL7F	Male LPIL7M
Model number	LPIL7F	LPIL7M
Series	Low Profile (LP) Series
Configuration	In-Line (IL) — Female	In-Line (IL) — Male
Number of contacts / pins	7
Voltage rating	250 V DC/AC rms
Current per contact	5 A per contact (2–4 pin) / 4 A per contact (5–9 pin)
Maximum total current	28 A
Insulation resistance	>200 MΩ
Contact resistance	<0.01 Ω
Mated pressure rating	600 Bar (8,700 psi)
Open-face pressure rating	300 Bar (4,350 psi)
Rated depth (mated)	6,000 m (mated)
Wet-mate cycles	>500
Temperature (water)	−4°C to +60°C
Temperature (air)	−40°C to +60°C
Body design	Low-profile flat body — minimum drag
Body material	Chloroprene rubber
Shell material	316 Stainless Steel (Titanium on request)
Contacts	Gold-plated beryllium copper / brass
Locking sleeve	POM or Stainless Steel (mandatory before deployment)
O-ring seals	Nitrile
Cable jacket	Polyurethane (PUR) — customer-specified OD

Bulkhead · 7-contact

FemaleLPBH7F

MaleLPBH7M

Female · LPBH7F. Bulkhead form with 7 contacts for the Low Profile Series.

Male · LPBH7M. Bulkhead form with 7 contacts for the Low Profile Series.

Technical specifications

Parameter	Female LPBH7F	Male LPBH7M
Model number	LPBH7F	LPBH7M
Series	Low Profile (LP) Series
Configuration	Bulkhead (BH) — Female	Bulkhead (BH) — Male
Number of contacts / pins	7
Voltage rating	250 V DC/AC rms
Current per contact	5 A per contact (2–4 pin) / 4 A per contact (5–9 pin)
Maximum total current	28 A
Insulation resistance	>200 MΩ
Contact resistance	<0.01 Ω
Mated pressure rating	600 Bar (8,700 psi)
Open-face pressure rating	300 Bar (4,350 psi)
Rated depth (mated)	6,000 m (mated)
Wet-mate cycles	>500
Temperature (water)	−4°C to +60°C
Temperature (air)	−40°C to +60°C
Body design	Low-profile flat body — minimum drag
Body material	Chloroprene rubber
Shell material	316 Stainless Steel (Titanium on request)
Contacts	Gold-plated beryllium copper / brass
Locking sleeve	POM or Stainless Steel (mandatory before deployment)
O-ring seals	Nitrile
Cable jacket	Polyurethane (PUR) — customer-specified OD

Dummy / protective · 7-contact

FemaleLPDC7F

MaleLPDC7M

Female · LPDC7F. Dummy / protective form with 7 contacts for the Low Profile Series.

Male · LPDC7M. Dummy / protective form with 7 contacts for the Low Profile Series.

Technical specifications

Parameter	Female LPDC7F	Male LPDC7M
Model number	LPDC7F	LPDC7M
Series	Low Profile (LP) Series
Configuration	Dummy Connector (protective)
Number of contacts / pins	7
Voltage rating	N/A (no live contacts)
Current per contact	N/A
Maximum total current	N/A
Insulation resistance	N/A
Contact resistance	N/A
Mated pressure rating	600 Bar (8,700 psi)
Open-face pressure rating	300 Bar (4,350 psi)
Rated depth (mated)	6,000 m (mated)
Wet-mate cycles	>500
Temperature (water)	−4°C to +60°C
Temperature (air)	−40°C to +60°C
Body design	Low-profile flat body — minimum drag
Body material	Chloroprene rubber
Shell material	316 Stainless Steel (Titanium on request)
Contacts	None (dummy)
Locking sleeve	POM or Stainless Steel (mandatory before deployment)
O-ring seals	Nitrile
Cable jacket	Polyurethane (PUR) — customer-specified OD

In-line · 7-contact

MaleLPIL9M

Male · LPIL9M. In-line form with 7 contacts for the Low Profile Series.

Technical specifications

Parameter	Value
Model number	LPDC7M
Series	Low Profile (LP) Series
Configuration	Dummy Connector (protective)
Number of contacts / pins	7
Voltage rating	N/A (no live contacts)
Current per contact	N/A
Maximum total current	N/A
Insulation resistance	N/A
Contact resistance	N/A
Mated pressure rating	600 Bar (8,700 psi)
Open-face pressure rating	300 Bar (4,350 psi)
Rated depth (mated)	6,000 m (mated)
Wet-mate cycles	>500
Temperature (water)	−4°C to +60°C
Temperature (air)	−40°C to +60°C
Body design	Low-profile flat body — minimum drag
Body material	Chloroprene rubber
Shell material	316 Stainless Steel (Titanium on request)
Contacts	None (dummy)
Locking sleeve	POM or Stainless Steel (mandatory before deployment)
O-ring seals	Nitrile
Cable jacket	Polyurethane (PUR) — customer-specified OD

In-line · 2-contact

MaleLPIL2M

Male · LPIL2M. In-line form with 2 contacts for the Low Profile Series.

Technical specifications

Parameter	Value
Model number	LPIL2M
Series	Low Profile (LP) Series
Configuration	In-Line (IL) — Male
Number of contacts / pins	2
Voltage rating	250 V DC/AC rms
Current per contact	5 A per contact (2–4 pin) / 4 A per contact (5–9 pin)
Maximum total current	10 A
Insulation resistance	>200 MΩ
Contact resistance	<0.01 Ω
Mated pressure rating	600 Bar (8,700 psi)
Open-face pressure rating	300 Bar (4,350 psi)
Rated depth (mated)	6,000 m (mated)
Wet-mate cycles	>500
Temperature (water)	−4°C to +60°C
Temperature (air)	−40°C to +60°C
Body design	Low-profile flat body — minimum drag
Body material	Chloroprene rubber
Shell material	316 Stainless Steel (Titanium on request)
Contacts	Gold-plated beryllium copper / brass
Locking sleeve	POM or Stainless Steel (mandatory before deployment)
O-ring seals	Nitrile
Cable jacket	Polyurethane (PUR) — customer-specified OD

In-line · 9-contact

FemaleLPIL9F

Female · LPIL9F. In-line form with 9 contacts for the Low Profile Series.

Technical specifications

Parameter	Value
Model number	LPIL9F
Series	Low Profile (LP) Series
Configuration	In-Line (IL) — Female
Number of contacts / pins	9
Voltage rating	250 V DC/AC rms
Current per contact	5 A per contact (2–4 pin) / 4 A per contact (5–9 pin)
Maximum total current	36 A
Insulation resistance	>200 MΩ
Contact resistance	<0.01 Ω
Mated pressure rating	600 Bar (8,700 psi)
Open-face pressure rating	300 Bar (4,350 psi)
Rated depth (mated)	6,000 m (mated)
Wet-mate cycles	>500
Temperature (water)	−4°C to +60°C
Temperature (air)	−40°C to +60°C
Body design	Low-profile flat body — minimum drag
Body material	Chloroprene rubber
Shell material	316 Stainless Steel (Titanium on request)
Contacts	Gold-plated beryllium copper / brass
Locking sleeve	POM or Stainless Steel (mandatory before deployment)
O-ring seals	Nitrile
Cable jacket	Polyurethane (PUR) — customer-specified OD

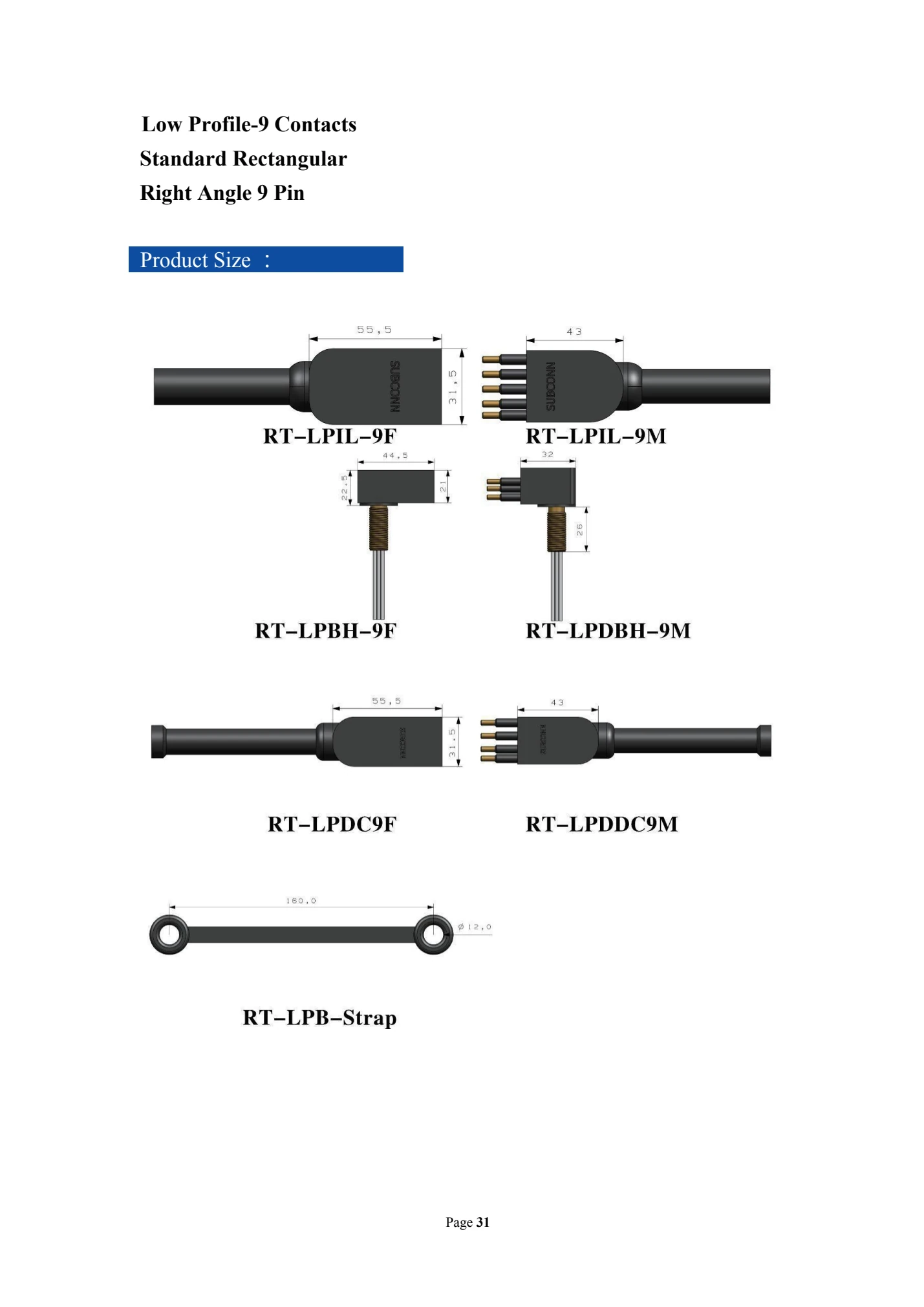

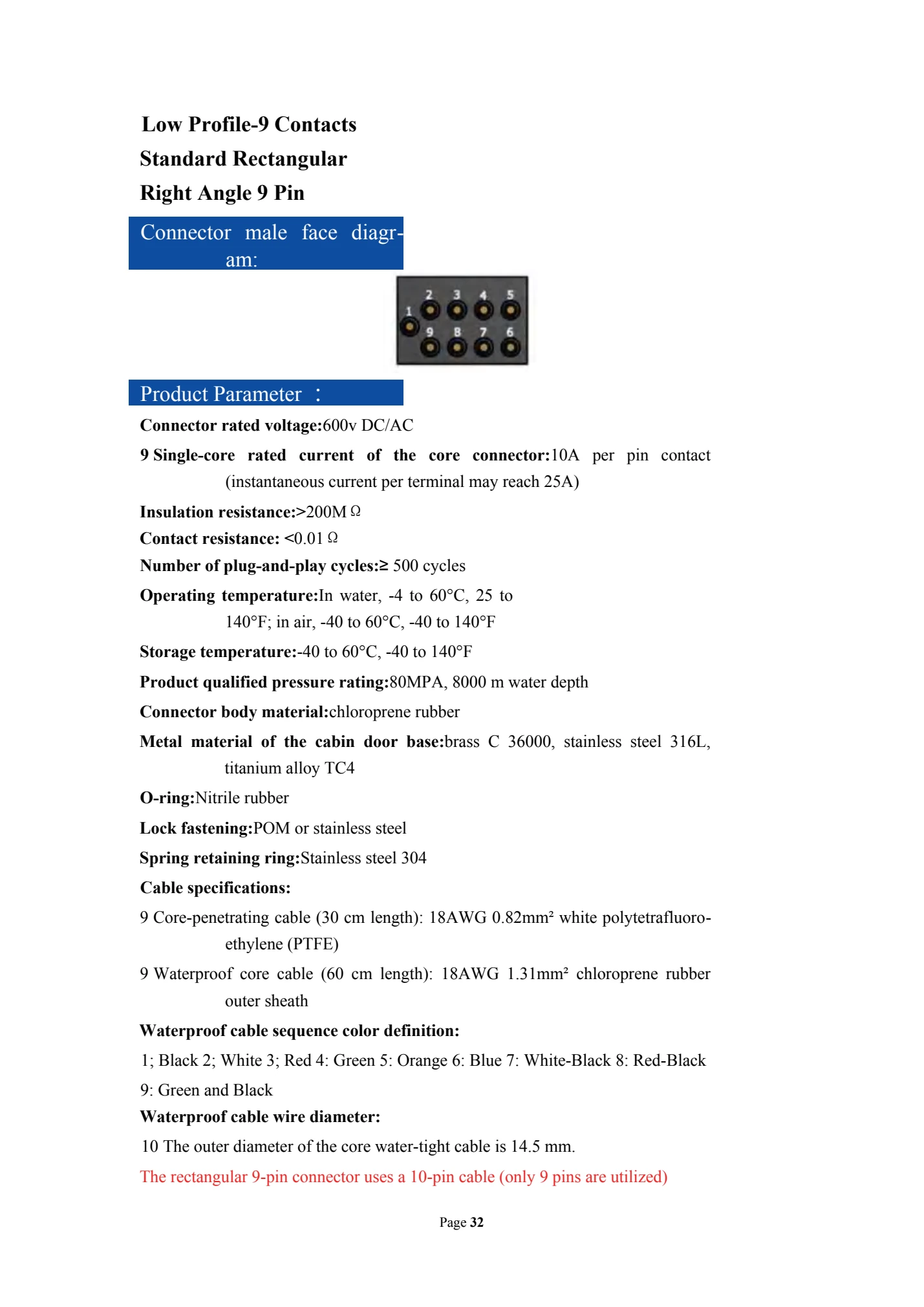

Bulkhead · 9-contact

FemaleLPBH9F

MaleLPBH9M

Female · LPBH9F. Bulkhead form with 9 contacts for the Low Profile Series.

Male · LPBH9M. Bulkhead form with 9 contacts for the Low Profile Series.

Technical specifications

Parameter	Female LPBH9F	Male LPBH9M
Model number	LPBH9F	LPBH9M
Series	Low Profile (LP) Series
Configuration	Bulkhead (BH) — Female	Bulkhead (BH) — Male
Number of contacts / pins	9
Voltage rating	250 V DC/AC rms
Current per contact	5 A per contact (2–4 pin) / 4 A per contact (5–9 pin)
Maximum total current	36 A
Insulation resistance	>200 MΩ
Contact resistance	<0.01 Ω
Mated pressure rating	600 Bar (8,700 psi)
Open-face pressure rating	300 Bar (4,350 psi)
Rated depth (mated)	6,000 m (mated)
Wet-mate cycles	>500
Temperature (water)	−4°C to +60°C
Temperature (air)	−40°C to +60°C
Body design	Low-profile flat body — minimum drag
Body material	Chloroprene rubber
Shell material	316 Stainless Steel (Titanium on request)
Contacts	Gold-plated beryllium copper / brass
Locking sleeve	POM or Stainless Steel (mandatory before deployment)
O-ring seals	Nitrile
Cable jacket	Polyurethane (PUR) — customer-specified OD

Dummy / protective · 9-contact

FemaleLPDC9F

MaleLPDC9M

Female · LPDC9F. Dummy / protective form with 9 contacts for the Low Profile Series.

Male · LPDC9M. Dummy / protective form with 9 contacts for the Low Profile Series.

Technical specifications

Parameter	Female LPDC9F	Male LPDC9M
Model number	LPDC9F	LPDC9M
Series	Low Profile (LP) Series
Configuration	Dummy Connector (protective)
Number of contacts / pins	9
Voltage rating	N/A (no live contacts)
Current per contact	N/A
Maximum total current	N/A
Insulation resistance	N/A
Contact resistance	N/A
Mated pressure rating	600 Bar (8,700 psi)
Open-face pressure rating	300 Bar (4,350 psi)
Rated depth (mated)	6,000 m (mated)
Wet-mate cycles	>500
Temperature (water)	−4°C to +60°C
Temperature (air)	−40°C to +60°C
Body design	Low-profile flat body — minimum drag
Body material	Chloroprene rubber
Shell material	316 Stainless Steel (Titanium on request)
Contacts	None (dummy)
Locking sleeve	POM or Stainless Steel (mandatory before deployment)
O-ring seals	Nitrile
Cable jacket	Polyurethane (PUR) — customer-specified OD

Bulkhead · 3-contact

MaleLPMBH-3-MP-IM

Male · LPMBH-3-MP-IM. Bulkhead form with 3 contacts for the Low Profile Series.

Technical specifications

Parameter	Value
Model number	LPMBH-3-MP-IM
Series	Impulse Low Profile Micro Series
Configuration	Bulkhead (BH) — Male
Number of contacts / pins	3
Voltage rating	250 V DC/AC rms
Current per contact	5 A per contact
Maximum total current	15 A
Insulation resistance	>200 MΩ
Contact resistance	<0.01 Ω
Mated pressure rating	690 Bar (10,000 psi)
Open-face pressure rating	480 Bar (7,000 psi)
Rated depth (mated)	7,000 m (mated)
Wet-mate cycles	>500
Temperature (water)	−4°C to +60°C
Temperature (air)	−40°C to +60°C
Body design	Low-profile flat body — minimum drag
Body material	Chloroprene rubber
Shell material	316 Stainless Steel (Titanium on request)
Contacts	Gold-plated beryllium copper / brass
Locking sleeve	POM or Stainless Steel (mandatory before deployment)
O-ring seals	Nitrile
Cable jacket	Polyurethane (PUR) — customer-specified OD

In-line · 3-contact

FemaleLPIL-3-FS-IM

Female · LPIL-3-FS-IM. In-line form with 3 contacts for the Low Profile Series.

Technical specifications

Parameter	Value
Model number	LPIL-3-FS-IM
Series	Impulse Low Profile Micro Series
Configuration	In-Line (IL) — Female
Number of contacts / pins	3
Voltage rating	250 V DC/AC rms
Current per contact	5 A per contact
Maximum total current	15 A
Insulation resistance	>200 MΩ
Contact resistance	<0.01 Ω
Mated pressure rating	690 Bar (10,000 psi)
Open-face pressure rating	480 Bar (7,000 psi)
Rated depth (mated)	7,000 m (mated)
Wet-mate cycles	>500
Temperature (water)	−4°C to +60°C
Temperature (air)	−40°C to +60°C
Body design	Low-profile flat body — minimum drag
Body material	Chloroprene rubber
Shell material	316 Stainless Steel (Titanium on request)
Contacts	Gold-plated beryllium copper / brass
Locking sleeve	POM or Stainless Steel (mandatory before deployment)
O-ring seals	Nitrile
Cable jacket	Polyurethane (PUR) — customer-specified OD

In-line · 7-contact

MaleLPIL-7-MP-IM

Male · LPIL-7-MP-IM. In-line form with 7 contacts for the Low Profile Series.

Technical specifications

Parameter	Value
Model number	LPIL-7-MP-IM
Series	Impulse Low Profile Micro Series
Configuration	In-Line (IL) — Male
Number of contacts / pins	7
Voltage rating	250 V DC/AC rms
Current per contact	5 A per contact
Maximum total current	35 A
Insulation resistance	>200 MΩ
Contact resistance	<0.01 Ω
Mated pressure rating	690 Bar (10,000 psi)
Open-face pressure rating	480 Bar (7,000 psi)
Rated depth (mated)	7,000 m (mated)
Wet-mate cycles	>500
Temperature (water)	−4°C to +60°C
Temperature (air)	−40°C to +60°C
Body design	Low-profile flat body — minimum drag
Body material	Chloroprene rubber
Shell material	316 Stainless Steel (Titanium on request)
Contacts	Gold-plated beryllium copper / brass
Locking sleeve	POM or Stainless Steel (mandatory before deployment)
O-ring seals	Nitrile
Cable jacket	Polyurethane (PUR) — customer-specified OD

Bulkhead · 7-contact

FemaleLPMBH-7-FS-IM

Female · LPMBH-7-FS-IM. Bulkhead form with 7 contacts for the Low Profile Series.

Technical specifications

Parameter	Value
Model number	LPMBH-7-FS-IM
Series	Impulse Low Profile Micro Series
Configuration	Bulkhead (BH) — Female
Number of contacts / pins	7
Voltage rating	250 V DC/AC rms
Current per contact	5 A per contact
Maximum total current	35 A
Insulation resistance	>200 MΩ
Contact resistance	<0.01 Ω
Mated pressure rating	690 Bar (10,000 psi)
Open-face pressure rating	480 Bar (7,000 psi)
Rated depth (mated)	7,000 m (mated)
Wet-mate cycles	>500
Temperature (water)	−4°C to +60°C
Temperature (air)	−40°C to +60°C
Body design	Low-profile flat body — minimum drag
Body material	Chloroprene rubber
Shell material	316 Stainless Steel (Titanium on request)
Contacts	Gold-plated beryllium copper / brass
Locking sleeve	POM or Stainless Steel (mandatory before deployment)
O-ring seals	Nitrile
Cable jacket	Polyurethane (PUR) — customer-specified OD

In-line · 8-contact

MaleLPIL-8-MP-IM

Male · LPIL-8-MP-IM. In-line form with 8 contacts for the Low Profile Series.

Technical specifications

Parameter	Value
Model number	LPIL-8-MP-IM
Series	Impulse Low Profile Micro Series
Configuration	In-Line (IL) — Male
Number of contacts / pins	8
Voltage rating	250 V DC/AC rms
Current per contact	5 A per contact
Maximum total current	40 A
Insulation resistance	>200 MΩ
Contact resistance	<0.01 Ω
Mated pressure rating	690 Bar (10,000 psi)
Open-face pressure rating	480 Bar (7,000 psi)
Rated depth (mated)	7,000 m (mated)
Wet-mate cycles	>500
Temperature (water)	−4°C to +60°C
Temperature (air)	−40°C to +60°C
Body design	Low-profile flat body — minimum drag
Body material	Chloroprene rubber
Shell material	316 Stainless Steel (Titanium on request)
Contacts	Gold-plated beryllium copper / brass
Locking sleeve	POM or Stainless Steel (mandatory before deployment)
O-ring seals	Nitrile
Cable jacket	Polyurethane (PUR) — customer-specified OD

Bulkhead · 8-contact

FemaleLPMBH-8-FS-IM

Female · LPMBH-8-FS-IM. Bulkhead form with 8 contacts for the Low Profile Series.

Technical specifications

Parameter	Value
Model number	LPMBH-8-FS-IM
Series	Impulse Low Profile Micro Series
Configuration	Bulkhead (BH) — Female
Number of contacts / pins	8
Voltage rating	250 V DC/AC rms
Current per contact	5 A per contact
Maximum total current	40 A
Insulation resistance	>200 MΩ
Contact resistance	<0.01 Ω
Mated pressure rating	690 Bar (10,000 psi)
Open-face pressure rating	480 Bar (7,000 psi)
Rated depth (mated)	7,000 m (mated)
Wet-mate cycles	>500
Temperature (water)	−4°C to +60°C
Temperature (air)	−40°C to +60°C
Body design	Low-profile flat body — minimum drag
Body material	Chloroprene rubber
Shell material	316 Stainless Steel (Titanium on request)
Contacts	Gold-plated beryllium copper / brass
Locking sleeve	POM or Stainless Steel (mandatory before deployment)
O-ring seals	Nitrile
Cable jacket	Polyurethane (PUR) — customer-specified OD
