IL2F / IL2M
2-contact inline connector
Two-contact Circular Series connectors for underwater power and signal connections. The inline female and male versions terminate cables for cable-to-cable connections.
For ROV systems, underwater cameras and lighting, and oceanographic instruments.
- Contacts
- 2
- Rated voltage
- 600 V
- Per contact
- 10 A
Specifications
- Contacts
- 2
- Rated voltage
- 600 V DC/AC
- Rated current / contact
- 10 A
- Insulation resistance
- > 200 MΩ
- Contact resistance
- < 0.01 Ω
- Connector body
- Chloroprene rubber
- Contacts
- Gold-plated brass
- O-ring
- Nitrile rubber
- Locking sleeve material
- POM or stainless steel
- Mating cycles
- ≥ 500
- Operating temperature · water
- −4 to +60 °C
- Operating temperature · air
- −40 to +60 °C
- Storage temperature
- −40 to +60 °C
- Pressure rating · mated
- 140 MPa

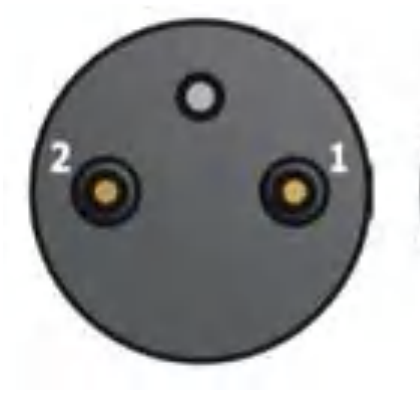

Dimensions & contact layout
Dimensions in mmCable & wiring
- Conductor size
- 16 AWG · 1.31 mm²
- Standard cable length
- 60 cm
- Cable outer diameter
- 9.3 mm
- Outer sheath
- Chloroprene rubber
- Wire 1
- Black
- Wire 2
- White
Custom cable and pigtail lengths, cable types, terminations and harness assemblies are available. Send us your cable and connection requirements.
Common questions
When should I choose inline or bulkhead connectors?
Use IL inline connectors to join cables. Use BH bulkhead connectors when the connection passes through an equipment housing.
Can I order a custom cable assembly?
Yes. Specify the cable type, cable and pigtail lengths, end terminations and wiring arrangement required for your installation.
What information should I include in my enquiry?
Include IL2F, IL2M or both, the quantity, cable requirements, mating equipment, operating voltage and current, and working depth or pressure.
