Metal Shell Series

Metal Shell 1500 connectors with metal mounting forms. The catalogue identifies the Micro Circular MCIL series as the matching cable plug.

Metal Shell 1500 specifications

Materials and operating conditions

MaleFCR1504M

Male · FCR1504M. Flange form with 4 contacts for the Metal Shell Series.

Technical specifications

Parameter	Value
Model number	FCR1504M
Series	Metal Shell 1500 Series
Shell size	Shell 15 (1500 series)
Configuration	Flange Connector (FCR) — Male
Number of contacts	4
Voltage rating	600 V DC/AC rms
Current per contact	15 A per contact
Maximum total current	60 A
Insulation resistance	>200 MΩ
Contact resistance	<0.01 Ω
Mated pressure rating	690 Bar (10,000 psi)
Open-face pressure rating	480 Bar (7,000 psi)
Rated depth (mated)	7,000 m
Wet-mate cycles	>500
Temperature (water)	−4°C to +60°C
Temperature (air)	−40°C to +60°C
Outer shell material	316 Stainless Steel (Titanium on request)
Insert / body material	Chloroprene rubber over-mould with hard shell
Contacts	Gold-plated beryllium copper
Locking mechanism	POM or Stainless Steel locking sleeve (mandatory)
O-ring seals	Nitrile
Mounting (FCR)	Flange with bolt circle — weld or bolt to structure
Mounting (BCR)	Jam-nut panel mount

MaleFCR1506M

Male · FCR1506M. Flange form with 6 contacts for the Metal Shell Series.

Technical specifications

Parameter	Value
Model number	FCR1506M
Series	Metal Shell 1500 Series
Shell size	Shell 15 (1500 series)
Configuration	Flange Connector (FCR) — Male
Number of contacts	6
Voltage rating	600 V DC/AC rms
Current per contact	10 A per contact
Maximum total current	60 A
Insulation resistance	>200 MΩ
Contact resistance	<0.01 Ω
Mated pressure rating	690 Bar (10,000 psi)
Open-face pressure rating	480 Bar (7,000 psi)
Rated depth (mated)	7,000 m
Wet-mate cycles	>500
Temperature (water)	−4°C to +60°C
Temperature (air)	−40°C to +60°C
Outer shell material	316 Stainless Steel (Titanium on request)
Insert / body material	Chloroprene rubber over-mould with hard shell
Contacts	Gold-plated beryllium copper
Locking mechanism	POM or Stainless Steel locking sleeve (mandatory)
O-ring seals	Nitrile
Mounting (FCR)	Flange with bolt circle — weld or bolt to structure
Mounting (BCR)	Jam-nut panel mount

FemaleFCR1508F

MaleFCR1508M

Female · FCR1508F. Flange form with 8 contacts for the Metal Shell Series.

Male · FCR1508M. Flange form with 8 contacts for the Metal Shell Series.

Technical specifications

Parameter	Female FCR1508F	Male FCR1508M
Model number	FCR1508F	FCR1508M
Series	Metal Shell 1500 Series
Shell size	Shell 15 (1500 series)
Configuration	Flange Connector (FCR) — Female	Flange Connector (FCR) — Male
Number of contacts	8
Voltage rating	600 V DC/AC rms
Current per contact	10 A per contact
Maximum total current	80 A
Insulation resistance	>200 MΩ
Contact resistance	<0.01 Ω
Mated pressure rating	690 Bar (10,000 psi)
Open-face pressure rating	480 Bar (7,000 psi)
Rated depth (mated)	7,000 m
Wet-mate cycles	>500
Temperature (water)	−4°C to +60°C
Temperature (air)	−40°C to +60°C
Outer shell material	316 Stainless Steel (Titanium on request)
Insert / body material	Chloroprene rubber over-mould with hard shell
Contacts	Gold-plated beryllium copper
Locking mechanism	POM or Stainless Steel locking sleeve (mandatory)
O-ring seals	Nitrile
Mounting (FCR)	Flange with bolt circle — weld or bolt to structure
Mounting (BCR)	Jam-nut panel mount

FemaleBCR1508F

Female · BCR1508F. Bulkhead form with 8 contacts for the Metal Shell Series.

Technical specifications

Parameter	Value
Model number	BCR1508F
Series	Metal Shell 1500 Series
Shell size	Shell 15 (1500 series)
Configuration	Bulkhead Connector (BCR) — Female
Number of contacts	8
Voltage rating	600 V DC/AC rms
Current per contact	10 A per contact
Maximum total current	80 A
Insulation resistance	>200 MΩ
Contact resistance	<0.01 Ω
Mated pressure rating	690 Bar (10,000 psi)
Open-face pressure rating	480 Bar (7,000 psi)
Rated depth (mated)	7,000 m
Wet-mate cycles	>500
Temperature (water)	−4°C to +60°C
Temperature (air)	−40°C to +60°C
Outer shell material	316 Stainless Steel (Titanium on request)
Insert / body material	Chloroprene rubber over-mould with hard shell
Contacts	Gold-plated beryllium copper
Locking mechanism	POM or Stainless Steel locking sleeve (mandatory)
O-ring seals	Nitrile
Mounting (FCR)	Flange with bolt circle — weld or bolt to structure
Mounting (BCR)	Jam-nut panel mount

FemaleFCR2002F

Female · FCR2002F. Flange form with 2 contacts for the Metal Shell Series.

Technical specifications

Parameter	Value
Model number	FCR2002F
Series	Metal Shell 2000 Series
Shell size	Shell 20 (2000 series)
Configuration	Flange Connector (FCR) — Female
Number of contacts	2
Voltage rating	600 V DC/AC rms
Current per contact	15 A per contact
Maximum total current	30 A
Insulation resistance	>200 MΩ
Contact resistance	<0.01 Ω
Mated pressure rating	690 Bar (10,000 psi)
Open-face pressure rating	480 Bar (7,000 psi)
Rated depth (mated)	7,000 m
Wet-mate cycles	>500
Temperature (water)	−4°C to +60°C
Temperature (air)	−40°C to +60°C
Outer shell material	316 Stainless Steel (Titanium on request)
Insert / body material	Chloroprene rubber over-mould with hard shell
Contacts	Gold-plated beryllium copper
Locking mechanism	POM or Stainless Steel locking sleeve (mandatory)
O-ring seals	Nitrile
Mounting (FCR)	Flange with bolt circle — weld or bolt to structure
Mounting (BCR)	Jam-nut panel mount

FemaleBCR2004F

MaleBCR2004M

Female · BCR2004F. Bulkhead form with 4 contacts for the Metal Shell Series.

Male · BCR2004M. Bulkhead form with 4 contacts for the Metal Shell Series.

Technical specifications

Parameter	Female BCR2004F	Male BCR2004M
Model number	BCR2004F	BCR2004M
Series	Metal Shell 2000 Series
Shell size	Shell 20 (2000 series)
Configuration	Bulkhead Connector (BCR) — Female	Bulkhead Connector (BCR) — Male
Number of contacts	4
Voltage rating	600 V DC/AC rms
Current per contact	15 A per contact
Maximum total current	60 A
Insulation resistance	>200 MΩ
Contact resistance	<0.01 Ω
Mated pressure rating	690 Bar (10,000 psi)
Open-face pressure rating	480 Bar (7,000 psi)
Rated depth (mated)	7,000 m
Wet-mate cycles	>500
Temperature (water)	−4°C to +60°C
Temperature (air)	−40°C to +60°C
Outer shell material	316 Stainless Steel (Titanium on request)
Insert / body material	Chloroprene rubber over-mould with hard shell
Contacts	Gold-plated beryllium copper
Locking mechanism	POM or Stainless Steel locking sleeve (mandatory)
O-ring seals	Nitrile
Mounting (FCR)	Flange with bolt circle — weld or bolt to structure
Mounting (BCR)	Jam-nut panel mount

FemaleFCR2010F

Female · FCR2010F. Flange form with 10 contacts for the Metal Shell Series.

Technical specifications

Parameter	Value
Model number	FCR2010F
Series	Metal Shell 2000 Series
Shell size	Shell 20 (2000 series)
Configuration	Flange Connector (FCR) — Female
Number of contacts	10
Voltage rating	600 V DC/AC rms
Current per contact	7.5 A per contact
Maximum total current	70 A
Insulation resistance	>200 MΩ
Contact resistance	<0.01 Ω
Mated pressure rating	690 Bar (10,000 psi)
Open-face pressure rating	480 Bar (7,000 psi)
Rated depth (mated)	7,000 m
Wet-mate cycles	>500
Temperature (water)	−4°C to +60°C
Temperature (air)	−40°C to +60°C
Outer shell material	316 Stainless Steel (Titanium on request)
Insert / body material	Chloroprene rubber over-mould with hard shell
Contacts	Gold-plated beryllium copper
Locking mechanism	POM or Stainless Steel locking sleeve (mandatory)
O-ring seals	Nitrile
Mounting (FCR)	Flange with bolt circle — weld or bolt to structure
Mounting (BCR)	Jam-nut panel mount

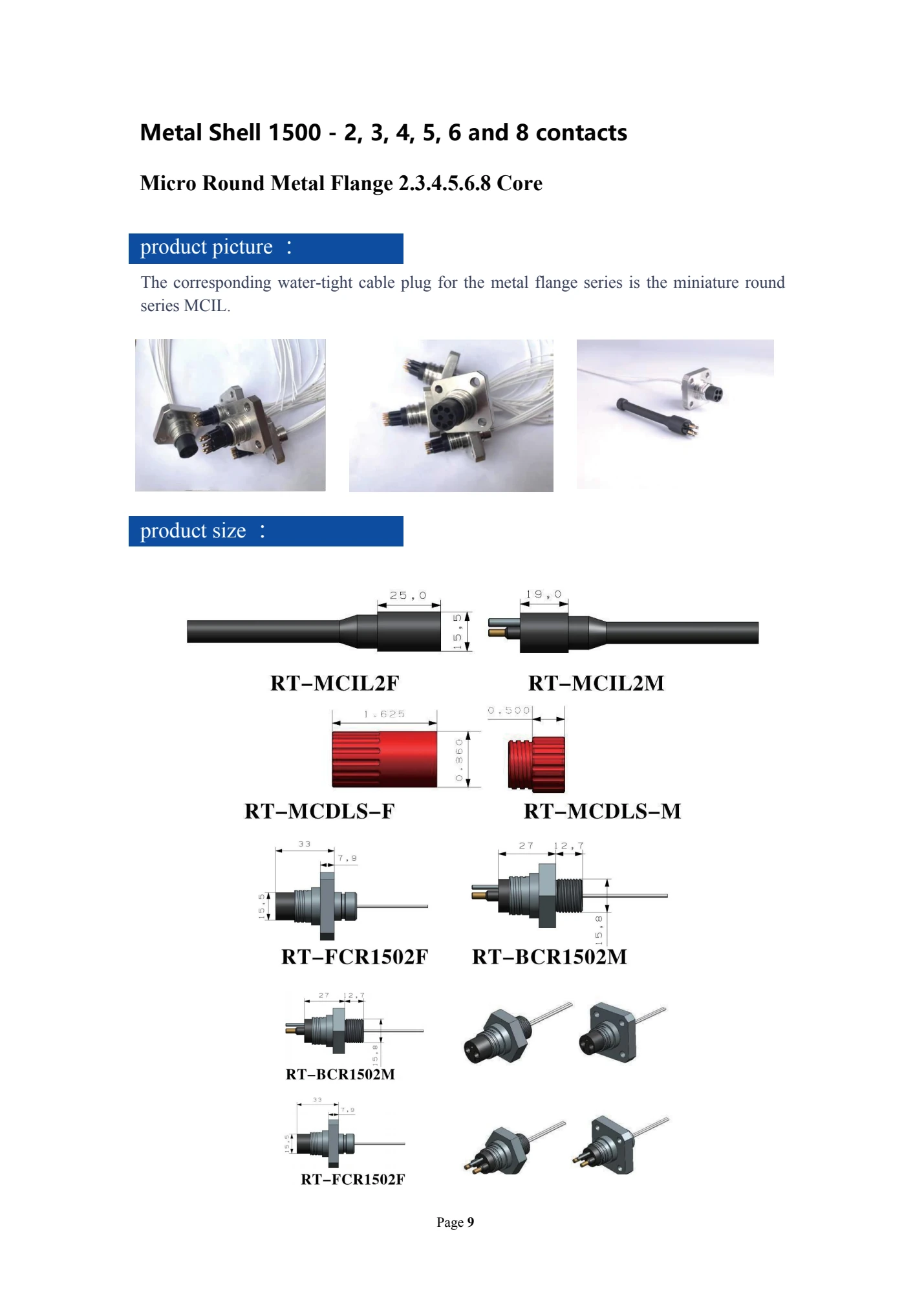

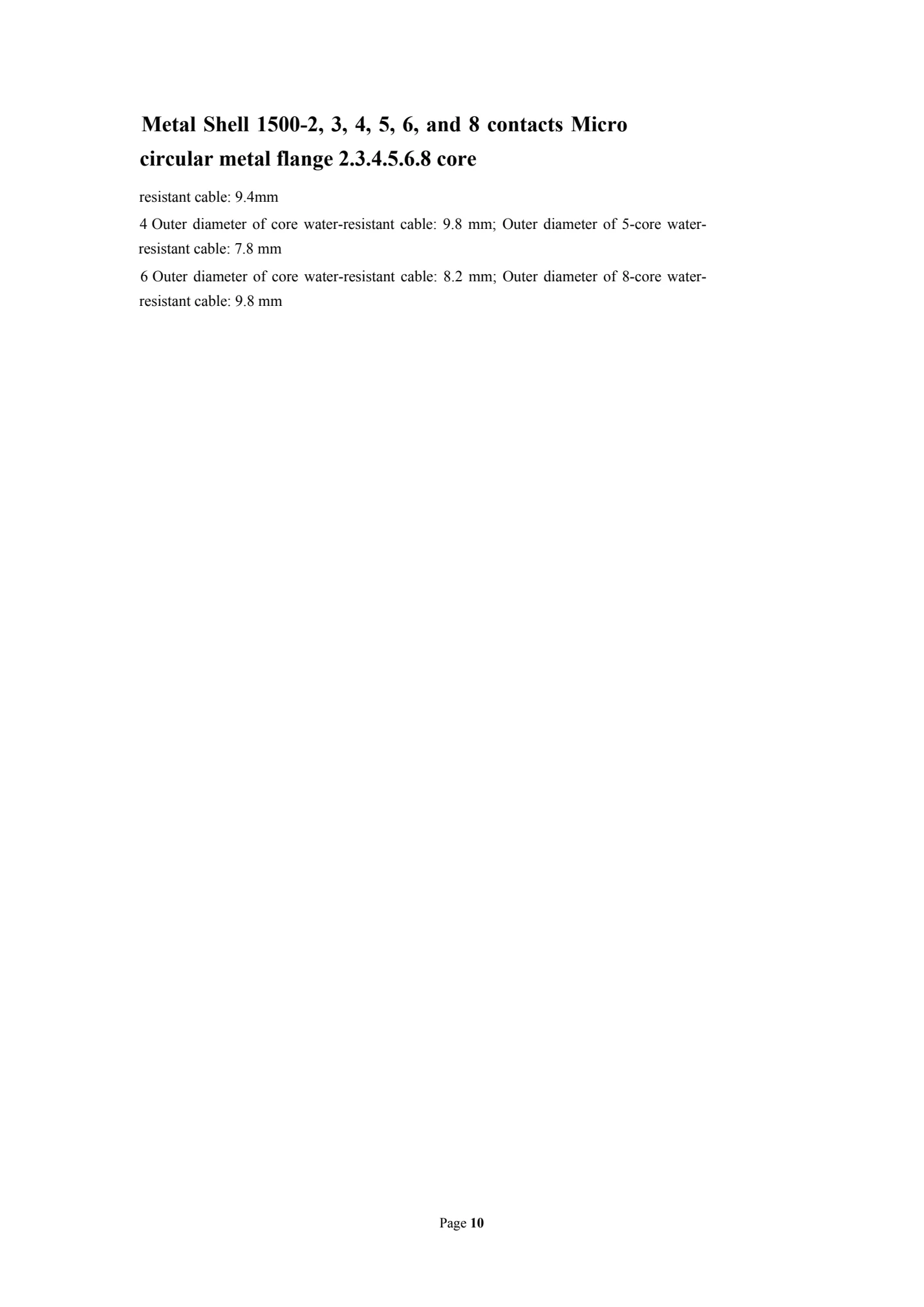

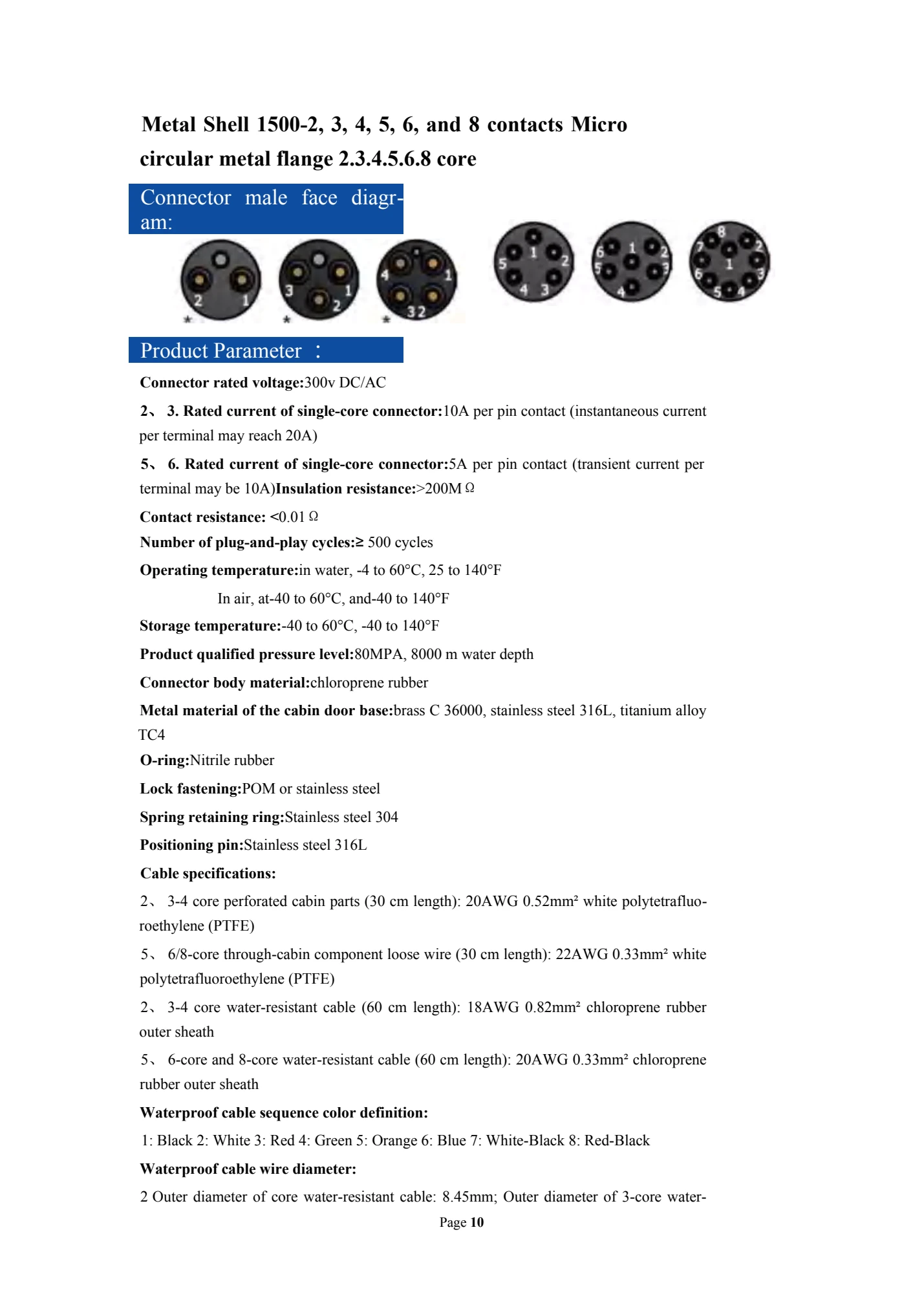

Metal Shell 1500 · 2, 3, 4, 5, 6 and 8 contactsPDF page 11–13

Mounting forms, matching cable connectors, contact layouts, material and cable data. Current ratings must be checked for the required contact count.
