Ethernet Series

Underwater Ethernet connections with 8-contact circular and 13-contact power/Ethernet forms. Electrical ratings depend on the documented form.

Ethernet specifications

Data rate: 1 Gbit/s (up to 75 m)
Insulation resistance: > 200 MΩ
Contact resistance: < 10 mΩ per contact (< 0.01 Ω)

Materials and operating conditions

Open-face pressure rating: 600 Bar / 8,700 psi (open face)

Products

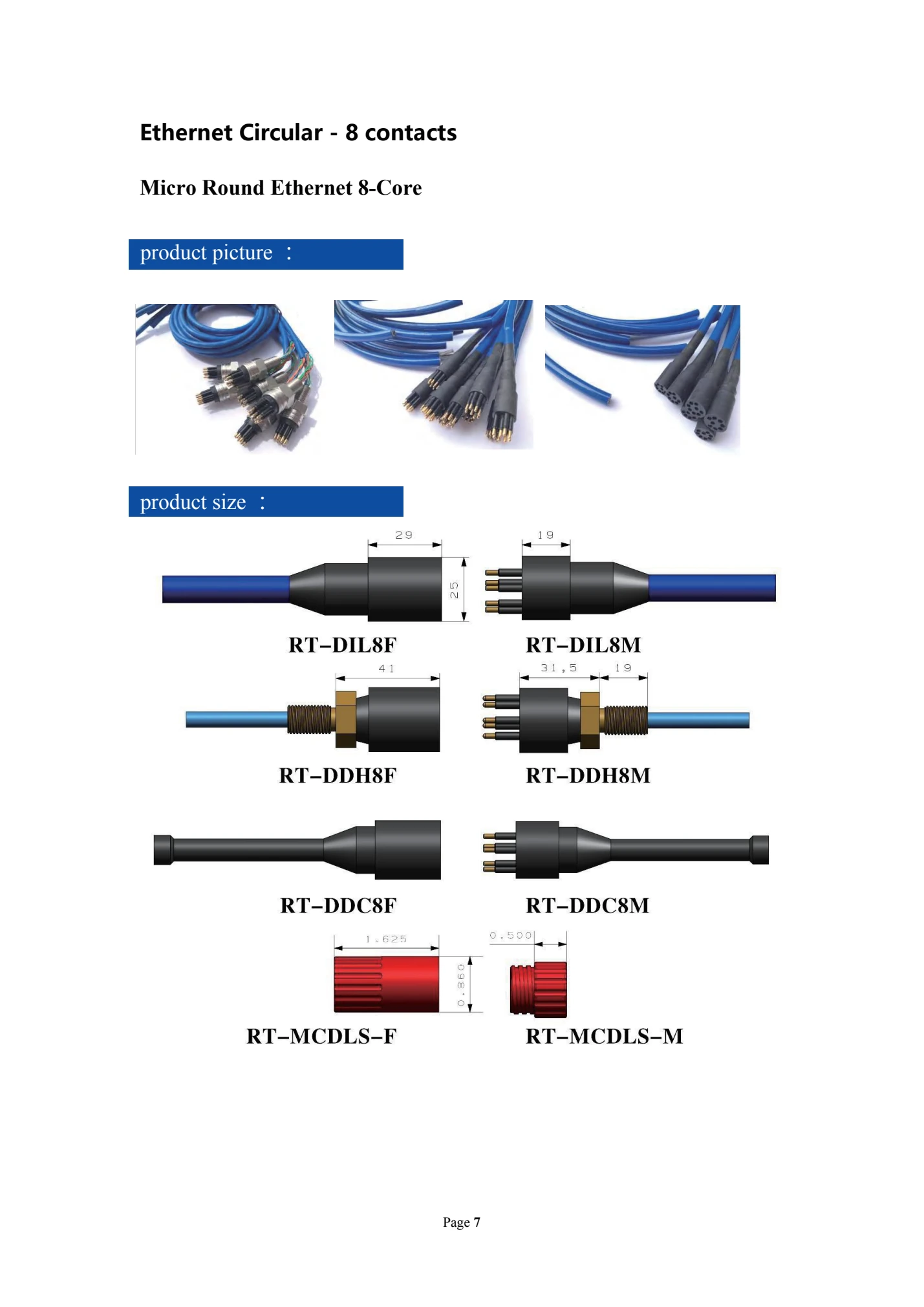

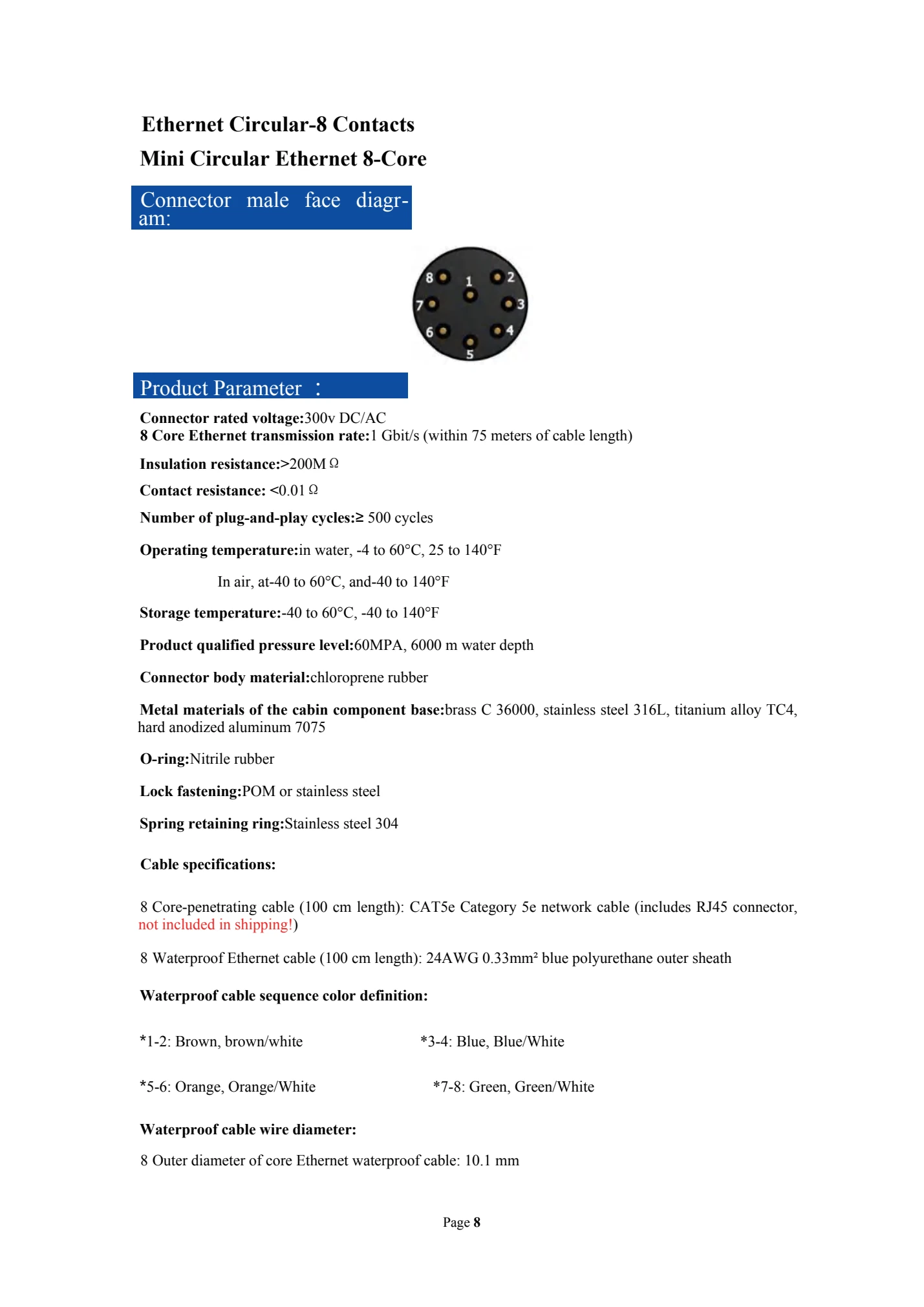

Bulkhead · 8-contact

FemaleDBH8F

MaleDBH8M

Female · DBH8F. Bulkhead form with 8 contacts for the Ethernet Series.

Male · DBH8M. Bulkhead form with 8 contacts for the Ethernet Series.

Technical specifications

Parameter	Female DBH8F	Male DBH8M
Number of Contacts	8
Rated Voltage	250 V DC/AC rms
Data Rate	1 Gbit/s (up to 75 m)
Protocol	IEEE 802.3 Gigabit Ethernet (1000BASE-T compatible)
Insulation Resistance	> 200 MΩ
Contact Resistance	< 10 mΩ per contact (< 0.01 Ω)
Qualified Pressure — Open Face	600 Bar / 8,700 psi (open face)
PEEK Variant Depth Rating	300 Bar / 4,350 psi (~3,000 m)
Wet Mating Cycles	> 500 cycles in seawater
Operating Temperature (water)	−4 °C to +60 °C
Operating Temperature (air)	−40 °C to +60 °C
Storage Temperature	−40 °C to +60 °C
Contact Material (female)	Gold-plated brass UNS-C36000
Contact Material (male)	Gold-plated beryllium copper
Connector Body	Chloroprene rubber
Bulkhead Body Options	Brass, stainless steel, titanium, anodised aluminium or PEEK
O-Ring Material	Nitrile
Locking Mechanism	POM or stainless steel
Snap Rings	Stainless steel AISI 302
Inline Cable	4-pair 24 AWG, 0.20 mm² PUR (CAT 5E)
Bulkhead / PBOF Lead	CAT 5E patch cable incl. RJ45 (not installed)
Connector Style	Ethernet Circular — Female Bulkhead	Ethernet Circular — Male Bulkhead

In-line · 8-contact

FemaleDIL8F

MaleDIL8M

Female · DIL8F. In-line form with 8 contacts for the Ethernet Series.

Male · DIL8M. In-line form with 8 contacts for the Ethernet Series.

Technical specifications

Parameter	Female DIL8F	Male DIL8M
Number of Contacts	8
Rated Voltage	250 V DC/AC rms
Data Rate	1 Gbit/s (up to 75 m)
Protocol	IEEE 802.3 Gigabit Ethernet (1000BASE-T compatible)
Insulation Resistance	> 200 MΩ
Contact Resistance	< 10 mΩ per contact (< 0.01 Ω)
Qualified Pressure — Open Face	600 Bar / 8,700 psi (open face)
PEEK Variant Depth Rating	300 Bar / 4,350 psi (~3,000 m)
Wet Mating Cycles	> 500 cycles in seawater
Operating Temperature (water)	−4 °C to +60 °C
Operating Temperature (air)	−40 °C to +60 °C
Storage Temperature	−40 °C to +60 °C
Contact Material (female)	Gold-plated brass UNS-C36000
Contact Material (male)	Gold-plated beryllium copper
Connector Body	Chloroprene rubber
Bulkhead Body Options	Brass, stainless steel, titanium, anodised aluminium or PEEK
O-Ring Material	Nitrile
Locking Mechanism	POM or stainless steel
Snap Rings	Stainless steel AISI 302
Inline Cable	4-pair 24 AWG, 0.20 mm² PUR (CAT 5E)
Bulkhead / PBOF Lead	CAT 5E patch cable incl. RJ45 (not installed)
Connector Style	Ethernet Circular — Female In-Line	Ethernet Circular — Male In-Line

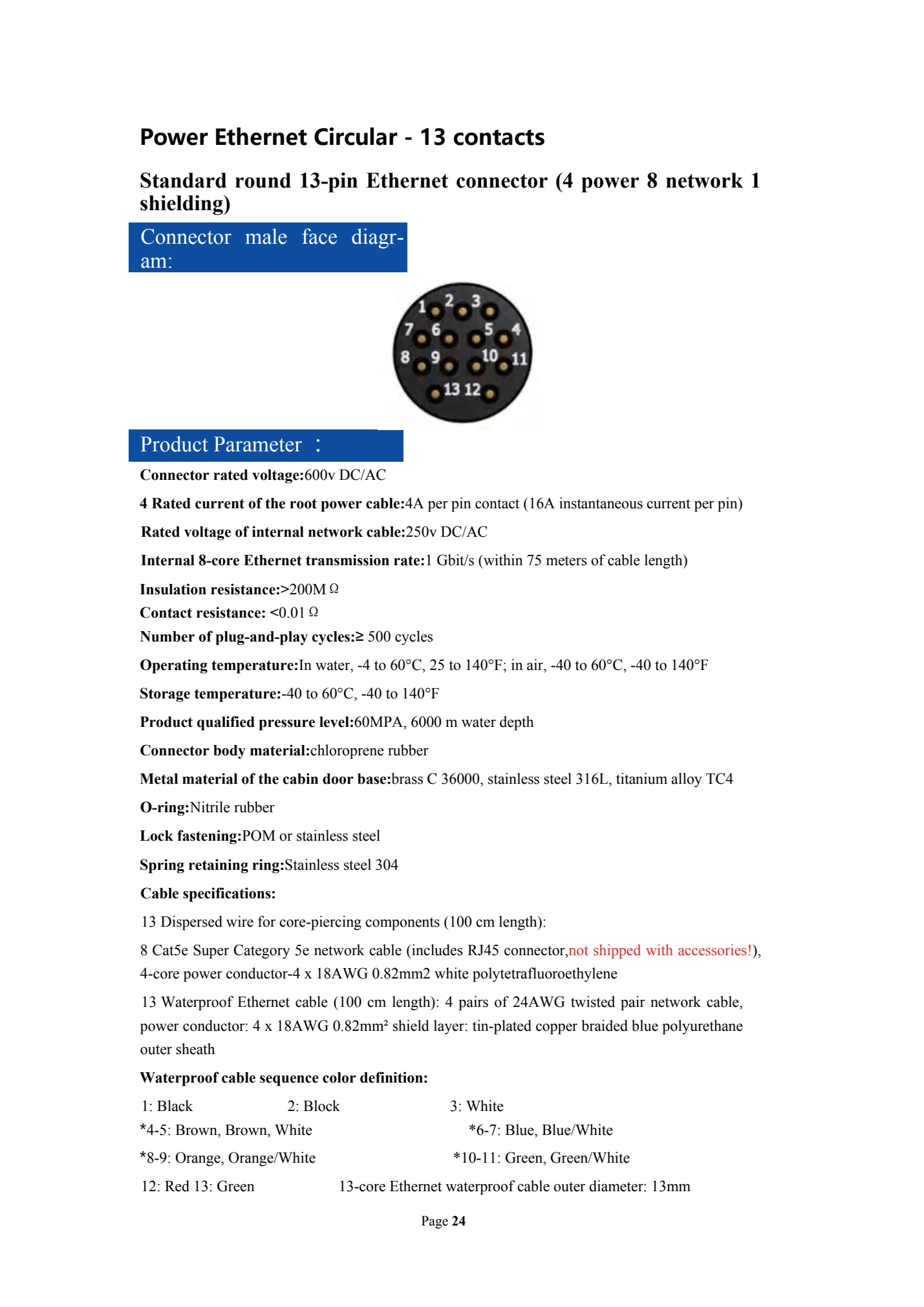

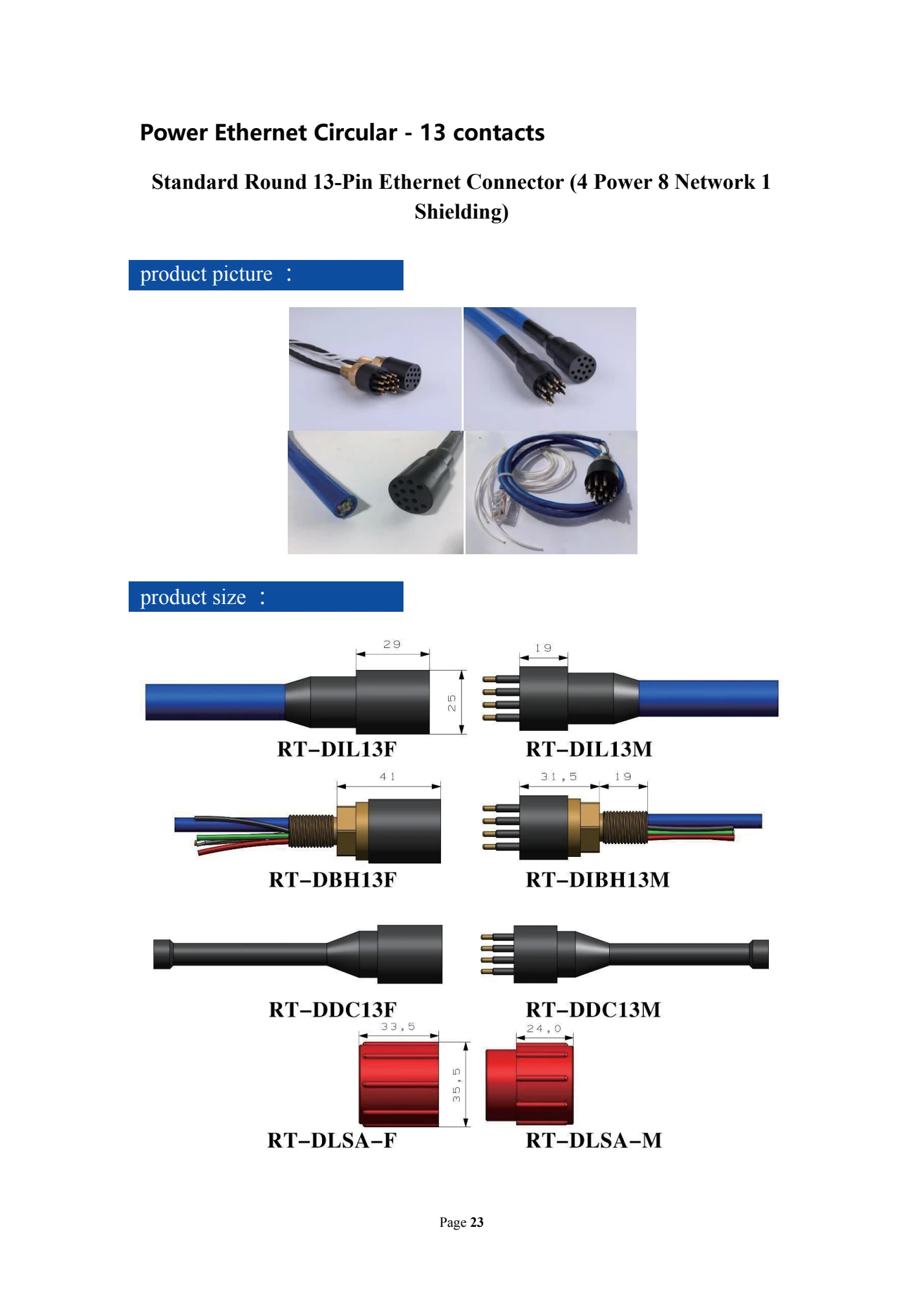

Bulkhead · 13-contact

FemaleDBH13F

MaleDBH13M

Female · DBH13F. Bulkhead form with 13 contacts for the Ethernet Series.

Male · DBH13M. Bulkhead form with 13 contacts for the Ethernet Series.

Technical specifications

Parameter	Female DBH13F	Male DBH13M
Number of Contacts	13
Rated Voltage	600 V DC/AC rms (power) / 250 V DC/AC rms (data)
Current Rating (power contacts)	4 A per contact (max 16 A per connector)
Data Rate	1 Gbit/s (up to 75 m)
Protocol	IEEE 802.3 Gigabit Ethernet (1000BASE-T compatible)
Insulation Resistance	> 200 MΩ
Contact Resistance	< 10 mΩ per contact (< 0.01 Ω)
Qualified Pressure — Open Face	600 Bar / 8,700 psi (open face)
PEEK Variant Depth Rating	300 Bar / 4,350 psi (~3,000 m)
Wet Mating Cycles	> 500 cycles in seawater
Operating Temperature (water)	−4 °C to +60 °C
Operating Temperature (air)	−40 °C to +60 °C
Storage Temperature	−40 °C to +60 °C
Contact Material (female)	Gold-plated brass UNS-C36000
Contact Material (male)	Gold-plated beryllium copper
Connector Body	Chloroprene rubber
Bulkhead Body Options	Brass, stainless steel, titanium, anodised aluminium or PEEK
O-Ring Material	Nitrile
Locking Mechanism	POM or stainless steel
Snap Rings	Stainless steel AISI 302
Inline Cable	4-pair 24 AWG, 0.20 mm² PUR + 4 × 18 AWG, 0.82 mm² power + tinned Cu braid screen
Bulkhead / PBOF Lead	CAT 5E patch cable, 5 × 20 AWG, 0.52 mm² coloured PTFE; RJ45 incl. (not installed)
Connector Style	Power Ethernet Circular — Female Bulkhead	Power Ethernet Circular — Male Bulkhead

In-line · 13-contact

Connector formDIL13F

DIL13F. In-line form with 13 contacts for the Ethernet Series.

Technical specifications

Parameter	Specification
Number of Contacts	13
Rated Voltage	600 V DC/AC rms (power) / 250 V DC/AC rms (data)
Current Rating (power contacts)	4 A per contact (max 16 A per connector)
Data Rate	1 Gbit/s (up to 75 m)
Protocol	IEEE 802.3 Gigabit Ethernet (1000BASE-T compatible)
Insulation Resistance	> 200 MΩ
Contact Resistance	< 10 mΩ per contact (< 0.01 Ω)
Qualified Pressure — Open Face	600 Bar / 8,700 psi (open face)
PEEK Variant Depth Rating	300 Bar / 4,350 psi (~3,000 m)
Wet Mating Cycles	> 500 cycles in seawater
Operating Temperature (water)	−4 °C to +60 °C
Operating Temperature (air)	−40 °C to +60 °C
Storage Temperature	−40 °C to +60 °C
Contact Material (female)	Gold-plated brass UNS-C36000
Contact Material (male)	Gold-plated beryllium copper
Connector Body	Chloroprene rubber
Bulkhead Body Options	Brass, stainless steel, titanium, anodised aluminium or PEEK
O-Ring Material	Nitrile
Locking Mechanism	POM or stainless steel
Snap Rings	Stainless steel AISI 302
Inline Cable	4-pair 24 AWG, 0.20 mm² PUR + 4 × 18 AWG, 0.82 mm² power + tinned Cu braid screen
Bulkhead / PBOF Lead	CAT 5E patch cable, 5 × 20 AWG, 0.52 mm² coloured PTFE; RJ45 incl. (not installed)
Connector Style	Power Ethernet Circular — Female In-Line

In-line · 13-contact

MaleDIL13M

Male · DIL13M. In-line form with 13 contacts for the Ethernet Series.

Technical specifications

Parameter	Specification
Number of Contacts	13
Rated Voltage	600 V DC/AC rms (power) / 250 V DC/AC rms (data)
Current Rating (power contacts)	4 A per contact (max 16 A per connector)
Data Rate	1 Gbit/s (up to 75 m)
Protocol	IEEE 802.3 Gigabit Ethernet (1000BASE-T compatible)
Insulation Resistance	> 200 MΩ
Contact Resistance	< 10 mΩ per contact (< 0.01 Ω)
Qualified Pressure — Open Face	600 Bar / 8,700 psi (open face)
PEEK Variant Depth Rating	300 Bar / 4,350 psi (~3,000 m)
Wet Mating Cycles	> 500 cycles in seawater
Operating Temperature (water)	−4 °C to +60 °C
Operating Temperature (air)	−40 °C to +60 °C
Storage Temperature	−40 °C to +60 °C
Contact Material (female)	Gold-plated brass UNS-C36000
Contact Material (male)	Gold-plated beryllium copper
Connector Body	Chloroprene rubber
Bulkhead Body Options	Brass, stainless steel, titanium, anodised aluminium or PEEK
O-Ring Material	Nitrile
Locking Mechanism	POM or stainless steel
Snap Rings	Stainless steel AISI 302
Inline Cable	4-pair 24 AWG, 0.20 mm² PUR + 4 × 18 AWG, 0.82 mm² power + tinned Cu braid screen
Bulkhead / PBOF Lead	CAT 5E patch cable, 5 × 20 AWG, 0.52 mm² coloured PTFE; RJ45 incl. (not installed)
Connector Style	Power Ethernet Circular — Male In-Line

Bulkhead · 9-contact

FemaleDLPBH9F

Female · DLPBH9F. Bulkhead form with 9 contacts for the Ethernet Series.

Technical specifications

Parameter	Specification
Number of Contacts	9
Rated Voltage	250 V DC/AC rms
Data Rate	1 Gbit/s (up to 75 m)
Protocol	IEEE 802.3 Gigabit Ethernet (1000BASE-T compatible)
Insulation Resistance	> 200 MΩ
Contact Resistance	< 10 mΩ per contact (< 0.01 Ω)
Qualified Pressure — Open Face	600 Bar / 8,700 psi (open face)
PEEK Variant Depth Rating	300 Bar / 4,350 psi (~3,000 m)
Wet Mating Cycles	> 500 cycles in seawater
Operating Temperature (water)	−4 °C to +60 °C
Operating Temperature (air)	−40 °C to +60 °C
Storage Temperature	−40 °C to +60 °C
Contact Material (female)	Gold-plated brass UNS-C36000
Contact Material (male)	Gold-plated beryllium copper
Connector Body	Chloroprene rubber
Bulkhead Body Options	Brass, stainless steel, titanium, anodised aluminium or PEEK
O-Ring Material	Nitrile
Locking Mechanism	Chloroprene rubber locking straps (LPA)
Snap Rings	Stainless steel AISI 302
Inline Cable	4-pair 24 AWG, 0.20 mm² PUR + tinned Cu braid screen
Bulkhead / PBOF Lead	CAT 5E patch cable incl. RJ45 (not installed)
Connector Style	Ethernet Low Profile — Female Bulkhead

Bulkhead · 9-contact

Connector formDLPBH9M

DLPBH9M. Bulkhead form with 9 contacts for the Ethernet Series.

Technical specifications

Parameter	Specification
Number of Contacts	9
Rated Voltage	250 V DC/AC rms
Data Rate	1 Gbit/s (up to 75 m)
Protocol	IEEE 802.3 Gigabit Ethernet (1000BASE-T compatible)
Insulation Resistance	> 200 MΩ
Contact Resistance	< 10 mΩ per contact (< 0.01 Ω)
Qualified Pressure — Open Face	600 Bar / 8,700 psi (open face)
PEEK Variant Depth Rating	300 Bar / 4,350 psi (~3,000 m)
Wet Mating Cycles	> 500 cycles in seawater
Operating Temperature (water)	−4 °C to +60 °C
Operating Temperature (air)	−40 °C to +60 °C
Storage Temperature	−40 °C to +60 °C
Contact Material (female)	Gold-plated brass UNS-C36000
Contact Material (male)	Gold-plated beryllium copper
Connector Body	Chloroprene rubber
Bulkhead Body Options	Brass, stainless steel, titanium, anodised aluminium or PEEK
O-Ring Material	Nitrile
Locking Mechanism	Chloroprene rubber locking straps (LPA)
Snap Rings	Stainless steel AISI 302
Inline Cable	4-pair 24 AWG, 0.20 mm² PUR + tinned Cu braid screen
Bulkhead / PBOF Lead	CAT 5E patch cable incl. RJ45 (not installed)
Connector Style	Ethernet Low Profile — Male Bulkhead

In-line · 9-contact

FemaleDLPIL9F

MaleDLPIL9M

Female · DLPIL9F. In-line form with 9 contacts for the Ethernet Series.

Male · DLPIL9M. In-line form with 9 contacts for the Ethernet Series.

Technical specifications

Parameter	Female DLPIL9F	Male DLPIL9M
Number of Contacts	9
Rated Voltage	250 V DC/AC rms
Data Rate	1 Gbit/s (up to 75 m)
Protocol	IEEE 802.3 Gigabit Ethernet (1000BASE-T compatible)
Insulation Resistance	> 200 MΩ
Contact Resistance	< 10 mΩ per contact (< 0.01 Ω)
Qualified Pressure — Open Face	600 Bar / 8,700 psi (open face)
PEEK Variant Depth Rating	300 Bar / 4,350 psi (~3,000 m)
Wet Mating Cycles	> 500 cycles in seawater
Operating Temperature (water)	−4 °C to +60 °C
Operating Temperature (air)	−40 °C to +60 °C
Storage Temperature	−40 °C to +60 °C
Contact Material (female)	Gold-plated brass UNS-C36000
Contact Material (male)	Gold-plated beryllium copper
Connector Body	Chloroprene rubber
Bulkhead Body Options	Brass, stainless steel, titanium, anodised aluminium or PEEK
O-Ring Material	Nitrile
Locking Mechanism	Chloroprene rubber locking straps (LPA)
Snap Rings	Stainless steel AISI 302
Inline Cable	4-pair 24 AWG, 0.20 mm² PUR + tinned Cu braid screen
Bulkhead / PBOF Lead	CAT 5E patch cable incl. RJ45 (not installed)
Connector Style	Ethernet Low Profile — Female In-Line	Ethernet Low Profile — Male In-Line

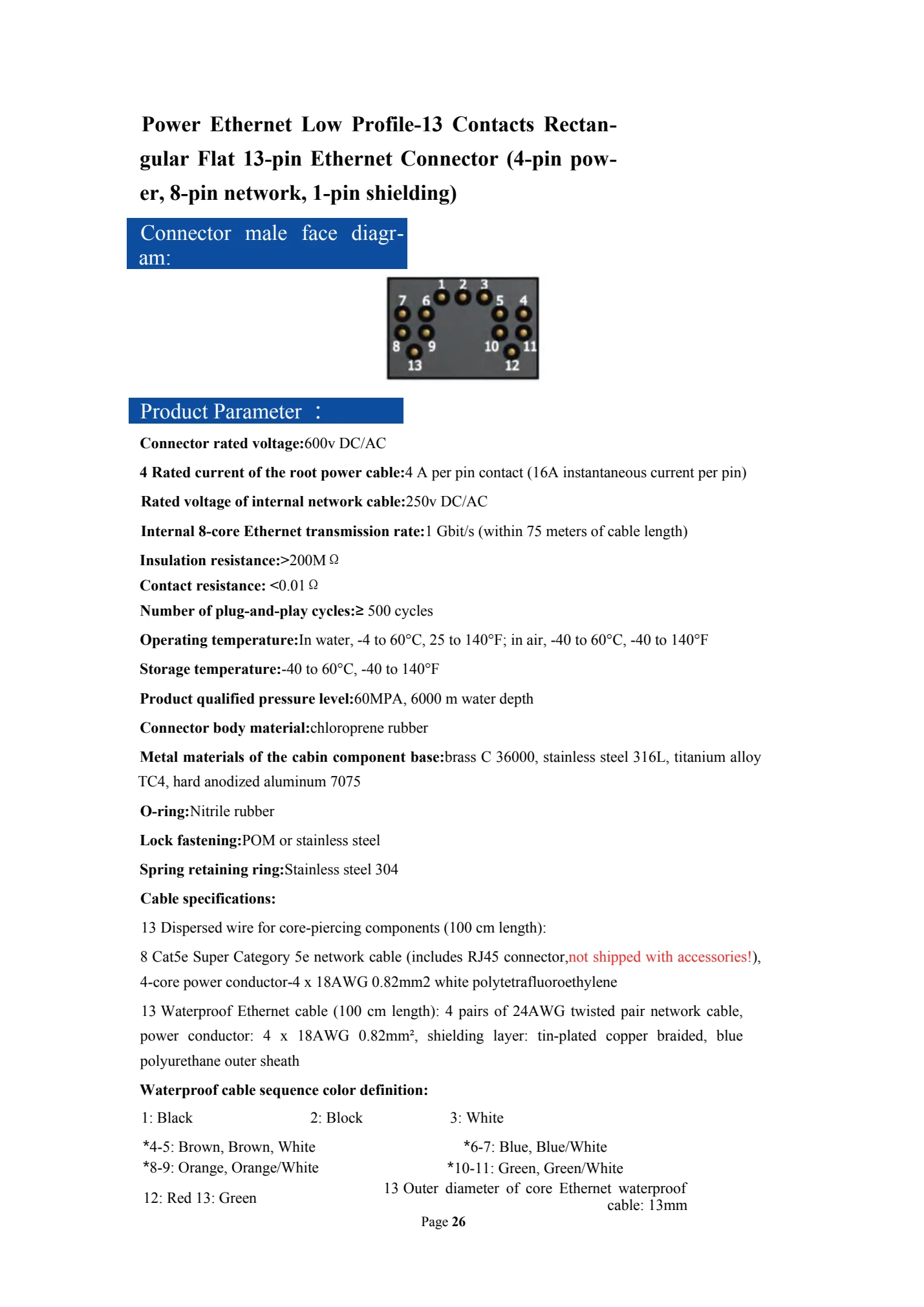

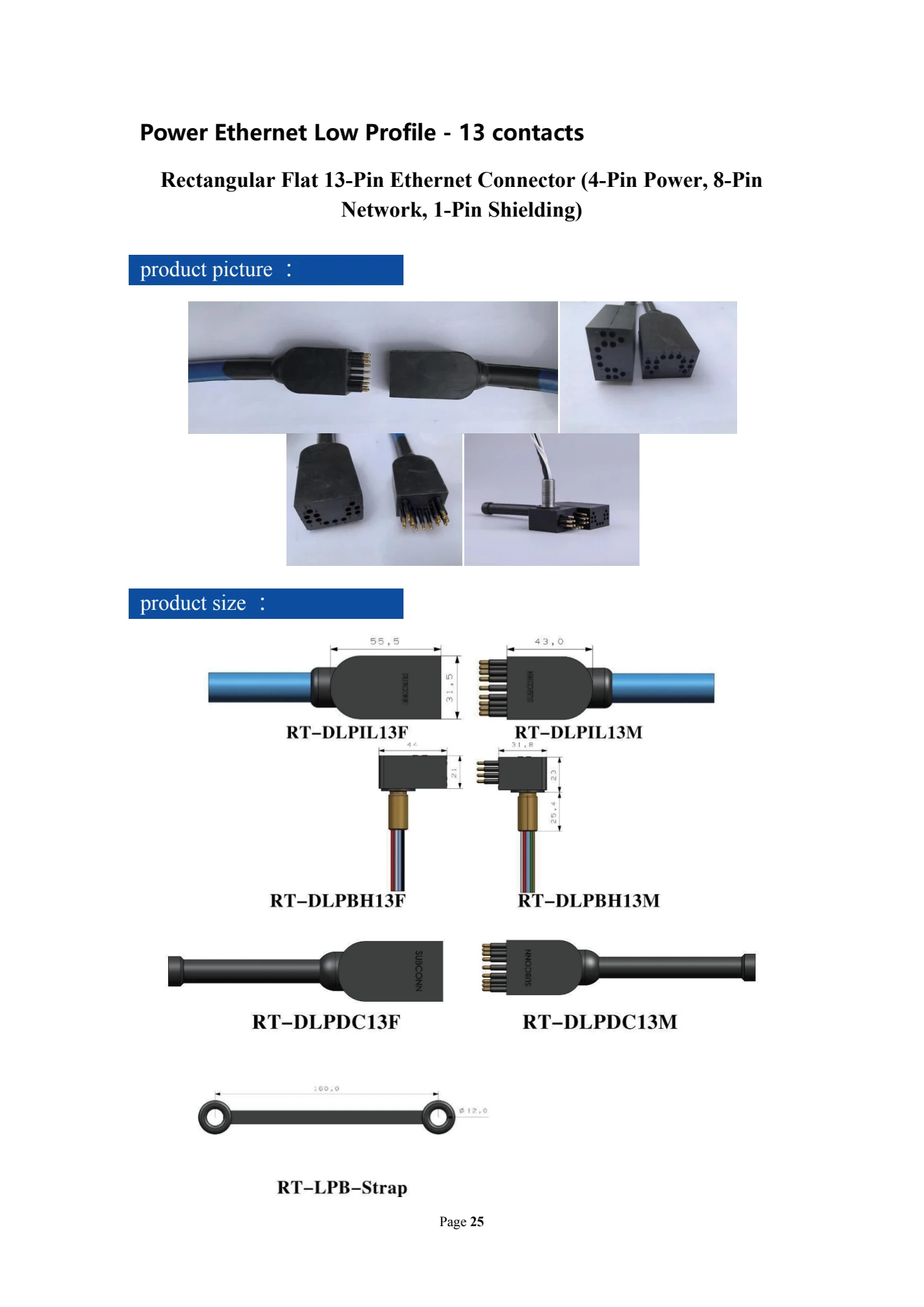

Bulkhead · 13-contact

FemaleDLPBH13F

Female · DLPBH13F. Bulkhead form with 13 contacts for the Ethernet Series.

Technical specifications

Parameter	Specification
Number of Contacts	13
Rated Voltage	600 V DC/AC rms (power) / 250 V DC/AC rms (data)
Current Rating (power contacts)	4 A per contact (max 16 A per connector)
Data Rate	1 Gbit/s (up to 75 m)
Protocol	IEEE 802.3 Gigabit Ethernet (1000BASE-T compatible)
Insulation Resistance	> 200 MΩ
Contact Resistance	< 10 mΩ per contact (< 0.01 Ω)
Qualified Pressure — Open Face	600 Bar / 8,700 psi (open face)
PEEK Variant Depth Rating	300 Bar / 4,350 psi (~3,000 m)
Wet Mating Cycles	> 500 cycles in seawater
Operating Temperature (water)	−4 °C to +60 °C
Operating Temperature (air)	−40 °C to +60 °C
Storage Temperature	−40 °C to +60 °C
Contact Material (female)	Gold-plated brass UNS-C36000
Contact Material (male)	Gold-plated beryllium copper
Connector Body	Chloroprene rubber
Bulkhead Body Options	Brass, stainless steel or titanium
O-Ring Material	Nitrile
Locking Mechanism	Chloroprene rubber locking straps (LPB)
Snap Rings	Stainless steel AISI 302
Inline Cable	4-pair 24 AWG, 0.20 mm² PUR + 4 × 18 AWG, 0.82 mm² power + tinned Cu braid screen
Bulkhead / PBOF Lead	CAT 5E patch cable, 5 × 20 AWG, 0.52 mm² coloured PTFE; RJ45 incl. (not installed)
Connector Style	Power Ethernet Low Profile — Female Bulkhead

Bulkhead · 13-contact

Connector formDLPBH13M

DLPBH13M. Bulkhead form with 13 contacts for the Ethernet Series.

Technical specifications

Parameter	Specification
Number of Contacts	13
Rated Voltage	600 V DC/AC rms (power) / 250 V DC/AC rms (data)
Current Rating (power contacts)	4 A per contact (max 16 A per connector)
Data Rate	1 Gbit/s (up to 75 m)
Protocol	IEEE 802.3 Gigabit Ethernet (1000BASE-T compatible)
Insulation Resistance	> 200 MΩ
Contact Resistance	< 10 mΩ per contact (< 0.01 Ω)
Qualified Pressure — Open Face	600 Bar / 8,700 psi (open face)
PEEK Variant Depth Rating	300 Bar / 4,350 psi (~3,000 m)
Wet Mating Cycles	> 500 cycles in seawater
Operating Temperature (water)	−4 °C to +60 °C
Operating Temperature (air)	−40 °C to +60 °C
Storage Temperature	−40 °C to +60 °C
Contact Material (female)	Gold-plated brass UNS-C36000
Contact Material (male)	Gold-plated beryllium copper
Connector Body	Chloroprene rubber
Bulkhead Body Options	Brass, stainless steel or titanium
O-Ring Material	Nitrile
Locking Mechanism	Chloroprene rubber locking straps (LPB)
Snap Rings	Stainless steel AISI 302
Inline Cable	4-pair 24 AWG, 0.20 mm² PUR + 4 × 18 AWG, 0.82 mm² power + tinned Cu braid screen
Bulkhead / PBOF Lead	CAT 5E patch cable, 5 × 20 AWG, 0.52 mm² coloured PTFE; RJ45 incl. (not installed)
Connector Style	Power Ethernet Low Profile — Male Bulkhead

In-line · 13-contact

FemaleDLPIL13F

MaleDLPIL13M

Female · DLPIL13F. In-line form with 13 contacts for the Ethernet Series.

Male · DLPIL13M. In-line form with 13 contacts for the Ethernet Series.

Technical specifications

Parameter	Female DLPIL13F	Male DLPIL13M
Number of Contacts	13
Rated Voltage	600 V DC/AC rms (power) / 250 V DC/AC rms (data)
Current Rating (power contacts)	4 A per contact (max 16 A per connector)
Data Rate	1 Gbit/s (up to 75 m)
Protocol	IEEE 802.3 Gigabit Ethernet (1000BASE-T compatible)
Insulation Resistance	> 200 MΩ
Contact Resistance	< 10 mΩ per contact (< 0.01 Ω)
Qualified Pressure — Open Face	600 Bar / 8,700 psi (open face)
PEEK Variant Depth Rating	300 Bar / 4,350 psi (~3,000 m)
Wet Mating Cycles	> 500 cycles in seawater
Operating Temperature (water)	−4 °C to +60 °C
Operating Temperature (air)	−40 °C to +60 °C
Storage Temperature	−40 °C to +60 °C
Contact Material (female)	Gold-plated brass UNS-C36000
Contact Material (male)	Gold-plated beryllium copper
Connector Body	Chloroprene rubber
Bulkhead Body Options	Brass, stainless steel or titanium
O-Ring Material	Nitrile
Locking Mechanism	Chloroprene rubber locking straps (LPB)
Snap Rings	Stainless steel AISI 302
Inline Cable	4-pair 24 AWG, 0.20 mm² PUR + 4 × 18 AWG, 0.82 mm² power + tinned Cu braid screen
Bulkhead / PBOF Lead	CAT 5E patch cable, 5 × 20 AWG, 0.52 mm² coloured PTFE; RJ45 incl. (not installed)
Connector Style	Power Ethernet Low Profile — Female In-Line	Power Ethernet Low Profile — Male In-Line

Technical documents

Circular Ethernet · 8 contactsPDF page 9–10

300 V DC/AC; Ethernet transmission of 1 Gbit/s within 75 m of cable length.

Circular Ethernet · 8 contacts · PDF page 10 — PDF page 10

Circular power/Ethernet · 13 contactsPDF page 28–29

4 power contacts, 8 network contacts and 1 shield contact. Power and network voltage ratings are specified separately.

Circular power/Ethernet · 13 contacts · PDF page 29 — PDF page 29

Low-profile power/Ethernet · 13 contactsPDF page 30–31

Rectangular form with separate power and network specifications, dimensional drawings and contact layout.

PDF page 30

Open original PDF

PDF page 31

Open original PDF
