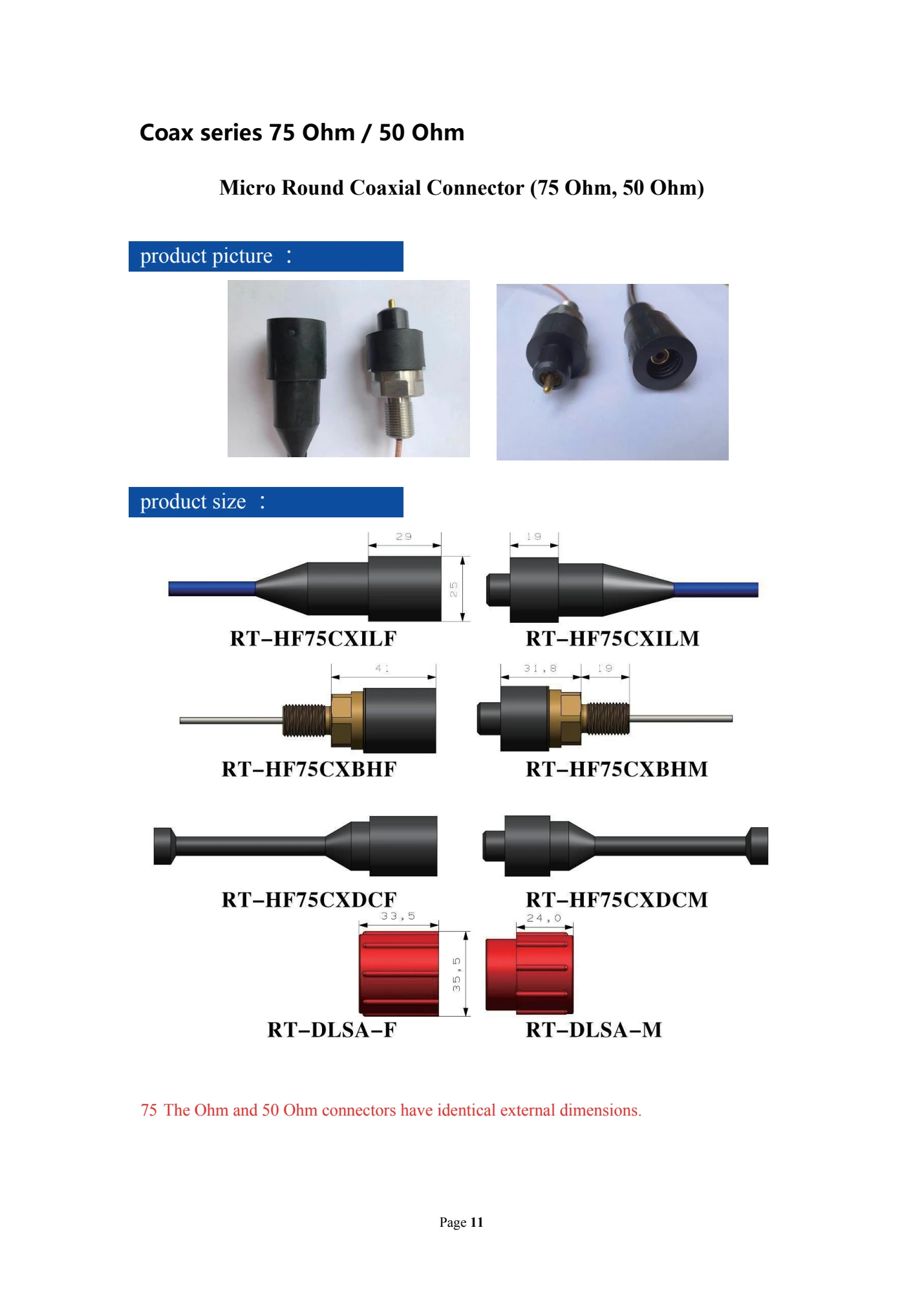

Female · 50CXBH6F / 75CXBH6F. Bulkhead form with 7 contacts for the Coax Series.
Male · 50CXBH6M / 75CXBH6M. Bulkhead form with 7 contacts for the Coax Series.

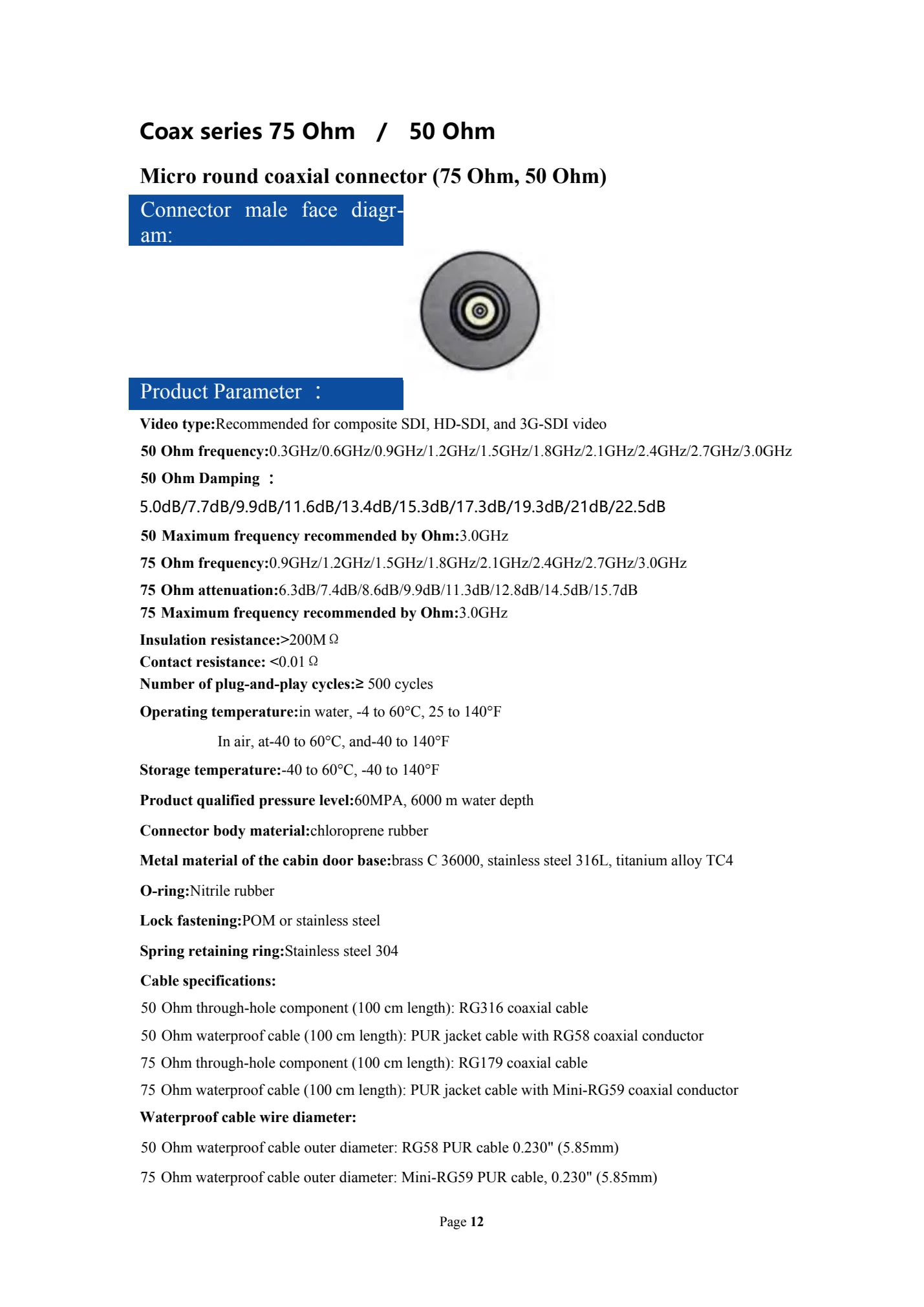

Technical specifications
| Parameter | Female 50CXBH6F / 75CXBH6F | Male 50CXBH6M / 75CXBH6M | ||
|---|---|---|---|---|
| 50 Ω (HF50CXBH6F) | 75 Ω (HF75CXBH6F) | 50 Ω (HF50CXBH6M) | 75 Ω (HF75CXBH6M) | |
| Impedance | 50 Ω | 75 Ω | 50 Ω | 75 Ω |
| Coaxial Voltage Rating | 800 V max nominal | 600 V max nominal | 800 V max nominal | 600 V max nominal |
| Recommended Max Frequency | 3.0 GHz | 3.0 GHz | 3.0 GHz | 3.0 GHz |
| Attenuation @ 0.9 GHz | 9.9 dB / 10 m | 6.3 dB / 10 m | 9.9 dB / 10 m | 6.3 dB / 10 m |
| Attenuation @ 1.5 GHz | 13.4 dB / 10 m | 8.6 dB / 10 m | 13.4 dB / 10 m | 8.6 dB / 10 m |
| Attenuation @ 2.4 GHz | 19.3 dB / 10 m | 12.8 dB / 10 m | 19.3 dB / 10 m | 12.8 dB / 10 m |
| Attenuation @ 3.0 GHz | 22.5 dB / 10 m | 15.7 dB / 10 m | 22.5 dB / 10 m | 15.7 dB / 10 m |
| Insulation Resistance | > 200 MΩ | > 200 MΩ | ||
| Contact Resistance | < 10 mΩ (< 0.01 Ω) | < 10 mΩ (< 0.01 Ω) | ||
| Qualified Pressure — Mated | 600 Bar / 8,700 psi | 600 Bar / 8,700 psi | ||
| Mating Type | Dry-mate only — not suitable for open-face pressure or wet mating | Dry-mate only — not suitable for open-face pressure or wet mating | ||
| Operating Temperature (water) | −4 °C to +60 °C | −4 °C to +60 °C | ||
| Operating Temperature (air) | −40 °C to +60 °C | −40 °C to +60 °C | ||
| Coax Contact Material | Gold-plated contacts | Gold-plated contacts | ||
| Connector Body | Chloroprene rubber | Chloroprene rubber | ||
| Bulkhead Body Options | Brass, 316L stainless steel, titanium, anodised aluminium | Brass, 316L stainless steel, titanium, anodised aluminium | ||
| O-Ring Material | Nitrile | Nitrile | ||
| Locking Sleeve | POM or stainless steel (mandatory before deployment) | POM or stainless steel (mandatory before deployment) | ||
| Snap Rings | DLSA stainless steel AISI 302 | DLSA stainless steel AISI 302 | ||
| Inline Cable | PUR jacket with RG58 coax | PUR jacket with Mini-RG59 coax | PUR jacket with RG58 coax | PUR jacket with Mini-RG59 coax |
| Bulkhead Lead | RG316 coax (3.3 ft / 100 cm) | RG179 coax (3.3 ft / 100 cm) | RG316 coax (3.3 ft / 100 cm) | RG179 coax (3.3 ft / 100 cm) |
| Electric Contacts | 6 | — | 6 | — |
| Voltage (electric contacts) | 300 V DC/AC rms | — | 300 V DC/AC rms | — |
| Current (electric contacts) | 5 A per contact (max 20 A per connector) | — | 5 A per contact (max 20 A per connector) | — |
| Electric Contact Material (female) | Gold-plated brass UNS-C36000 | — | Gold-plated brass UNS-C36000 | — |
| Electric Contact Material (male) | Gold-plated beryllium copper | — | Gold-plated beryllium copper | — |
| Inline cable (electric) | 6 × 20 AWG, 0.52 mm² conductors (with RG58/Mini-RG59) | — | 6 × 20 AWG, 0.52 mm² conductors (with RG58/Mini-RG59) | — |
| Bulkhead lead (electric) | 6 × 20 AWG, 0.52 mm² coloured PTFE (with RG316/RG179) | — | 6 × 20 AWG, 0.52 mm² coloured PTFE (with RG316/RG179) | — |
| Connector Style | 7-contact (1 coax + 6 electric) Female — Bulkhead | 7-contact (1 coax + 6 electric) Male — Bulkhead | ||
