55 Series

The catalogue presents RT-BURTON 55 cable connectors, flange and hexagon mounting forms, right-angle connectors and joints, followed by part-number and cable information.

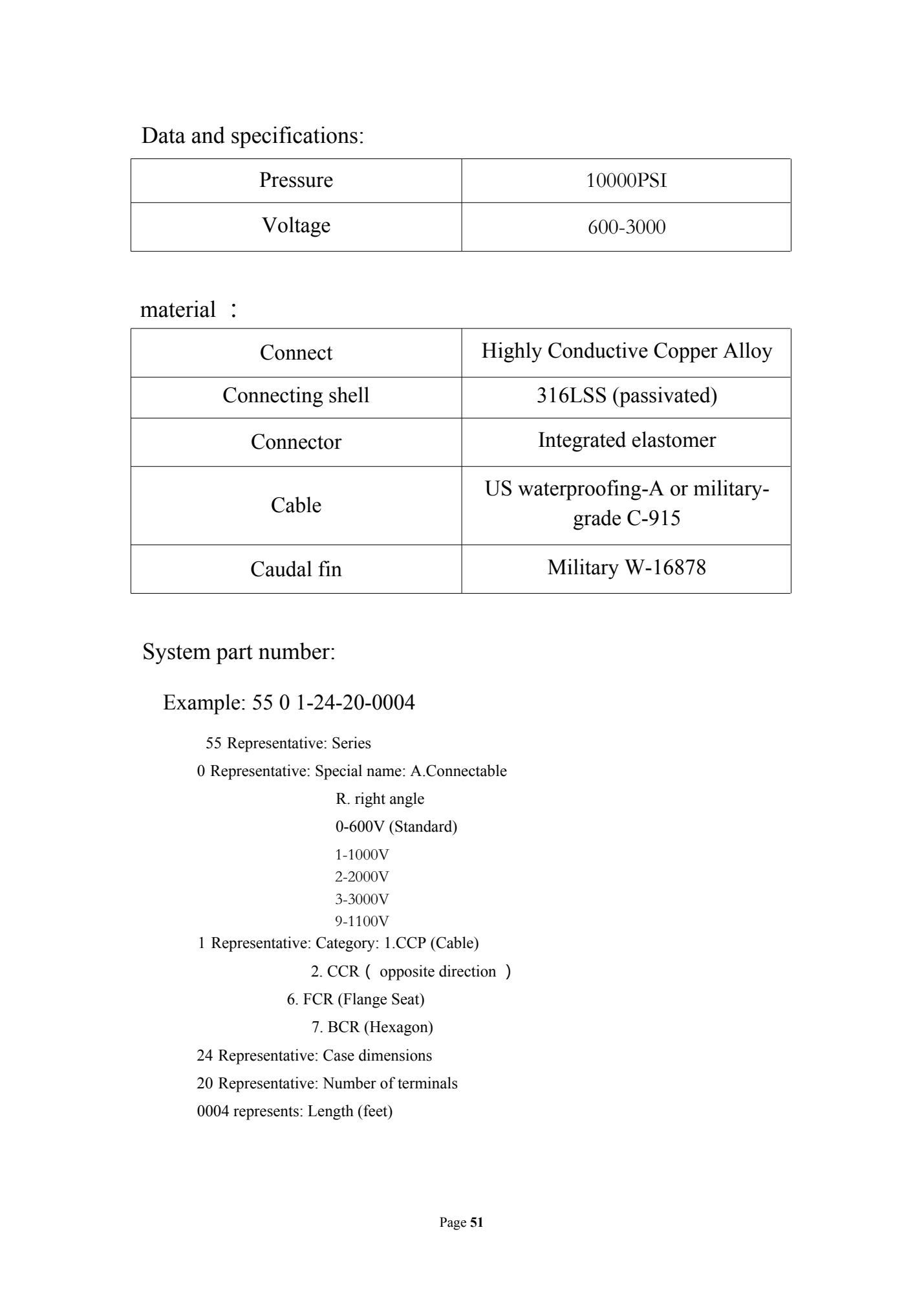

55 Series specifications

Wet / dry matings: >500 cycles
Temperature rating (water): −4°C to +60°C
Temperature rating (air): −40°C to +60°C

Materials and operating conditions

Connector body material: Chloroprene rubber
Shell / housing material: 316 Stainless Steel (Titanium on request)

Products

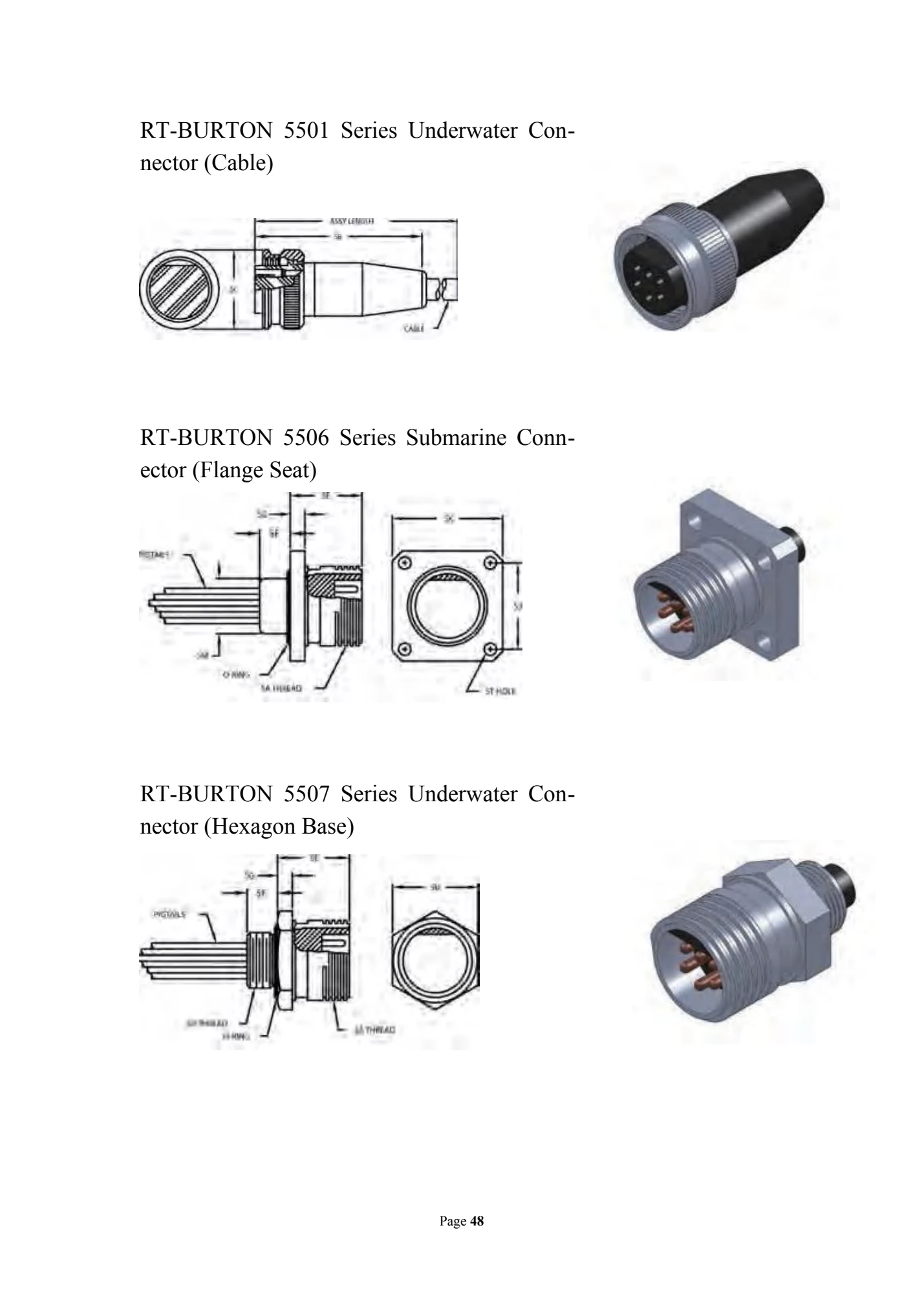

Flange · 3-contact

Male5506-1503

Male · 5506-1503. Flange form with 3 contacts for the 55 Series.

Technical specifications

Parameter	Value
Model number	5506-1503
Connector series	Burton-Compatible 55 Series
Configuration	FCR
Shell size	20
Number of contacts / channels	3
Voltage rating	600 V DC/AC rms
Current per contact	10 A per contact
Maximum total current	30 A
Insulation resistance	>200 MΩ
Contact resistance	<0.01 Ω
Mated pressure rating	690 Bar (10,000 psi)
Open-face pressure rating	480 Bar (7,000 psi)
Wet / dry matings	>500 cycles
Temperature rating (water)	−4°C to +60°C
Temperature rating (air)	−40°C to +60°C
Connector body material	Chloroprene rubber
Shell / housing material	316 Stainless Steel (Titanium on request)
Contacts	Gold-plated brass (female) / Gold-plated beryllium copper (male)
Locking mechanism	POM or Stainless Steel locking sleeve (mandatory before deployment)
O-ring seals	Nitrile
Cable jacket	Polyurethane (PUR) or Synthetic Rubber — customer-specified OD

Bulkhead · 3-contact

Male5507-1503

Male · 5507-1503. Bulkhead form with 3 contacts for the 55 Series.

Technical specifications

Parameter	Value
Model number	5507-1503
Connector series	Burton-Compatible 55 Series
Configuration	BCR
Shell size	20
Number of contacts / channels	3
Voltage rating	600 V DC/AC rms
Current per contact	10 A per contact
Maximum total current	30 A
Insulation resistance	>200 MΩ
Contact resistance	<0.01 Ω
Mated pressure rating	690 Bar (10,000 psi)
Open-face pressure rating	480 Bar (7,000 psi)
Wet / dry matings	>500 cycles
Temperature rating (water)	−4°C to +60°C
Temperature rating (air)	−40°C to +60°C
Connector body material	Chloroprene rubber
Shell / housing material	316 Stainless Steel (Titanium on request)
Contacts	Gold-plated brass (female) / Gold-plated beryllium copper (male)
Locking mechanism	POM or Stainless Steel locking sleeve (mandatory before deployment)
O-ring seals	Nitrile
Cable jacket	Polyurethane (PUR) or Synthetic Rubber — customer-specified OD

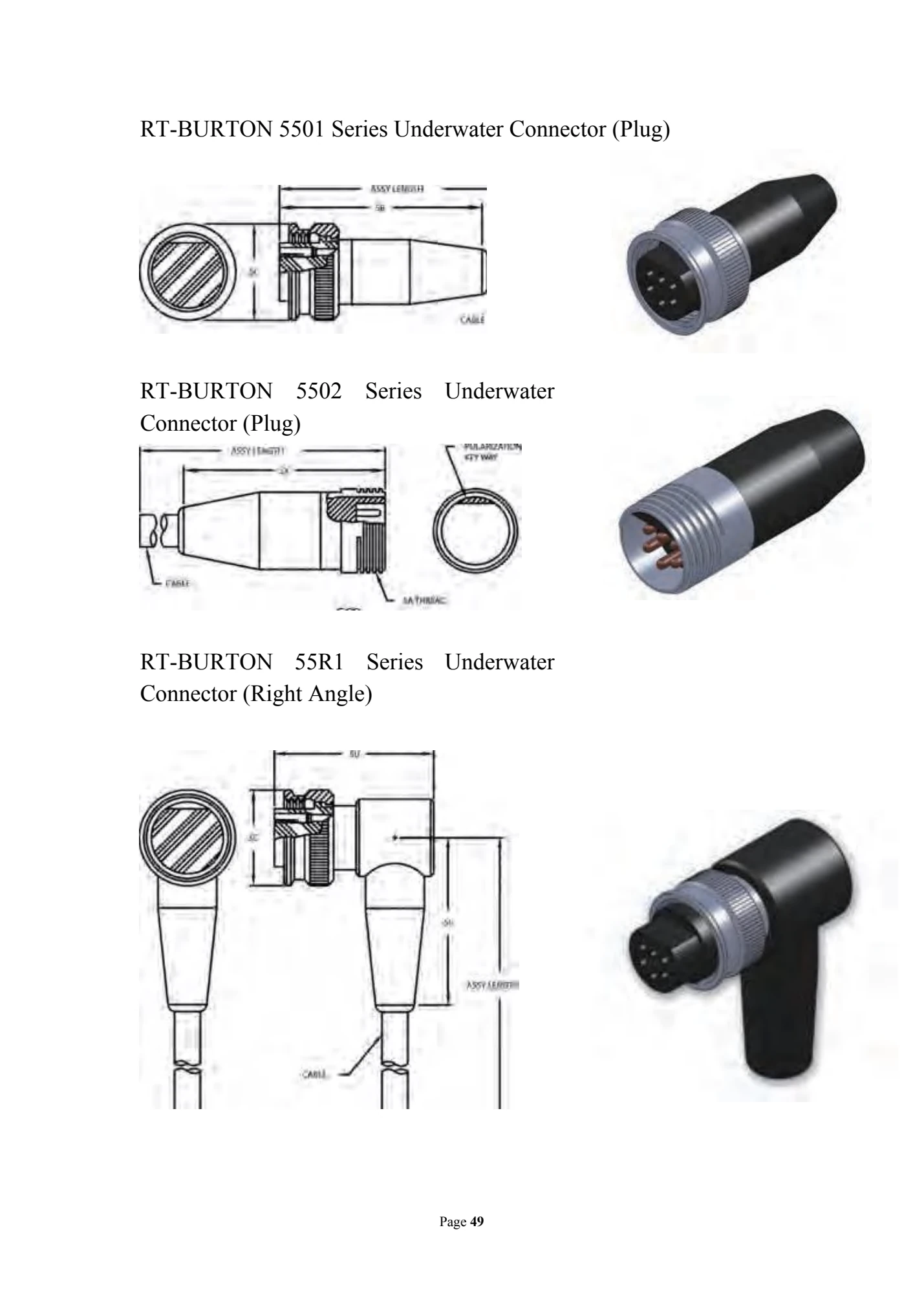

Cable plug · 3-contact

Male5501-1503

Male · 5501-1503. Cable plug form with 3 contacts for the 55 Series.

Technical specifications

Parameter	Value
Model number	5501-1503
Connector series	Burton-Compatible 55 Series
Configuration	CCP
Shell size	15
Number of contacts / channels	3
Voltage rating	600 V DC/AC rms
Current per contact	10 A per contact
Maximum total current	20 A (2-3 pin) / 10 A (4+ pin)
Insulation resistance	>200 MΩ
Contact resistance	<0.01 Ω
Mated pressure rating	690 Bar (10,000 psi)
Open-face pressure rating	480 Bar (7,000 psi)
Wet / dry matings	>500 cycles
Temperature rating (water)	−4°C to +60°C
Temperature rating (air)	−40°C to +60°C
Connector body material	Chloroprene rubber
Shell / housing material	316 Stainless Steel (Titanium on request)
Contacts	Gold-plated brass (female) / Gold-plated beryllium copper (male)
Locking mechanism	POM or Stainless Steel locking sleeve (mandatory before deployment)
O-ring seals	Nitrile
Cable jacket	Polyurethane (PUR) or Synthetic Rubber — customer-specified OD

Cable plug · 4-contact

Male5501-1504

Male · 5501-1504. Cable plug form with 4 contacts for the 55 Series.

Technical specifications

Parameter	Value
Model number	5501-1504
Connector series	Burton-Compatible 55 Series
Configuration	CCP
Shell size	15
Number of contacts / channels	4
Voltage rating	600 V DC/AC rms
Current per contact	10 A per contact
Maximum total current	20 A (2-3 pin) / 10 A (4+ pin)
Insulation resistance	>200 MΩ
Contact resistance	<0.01 Ω
Mated pressure rating	690 Bar (10,000 psi)
Open-face pressure rating	480 Bar (7,000 psi)
Wet / dry matings	>500 cycles
Temperature rating (water)	−4°C to +60°C
Temperature rating (air)	−40°C to +60°C
Connector body material	Chloroprene rubber
Shell / housing material	316 Stainless Steel (Titanium on request)
Contacts	Gold-plated brass (female) / Gold-plated beryllium copper (male)
Locking mechanism	POM or Stainless Steel locking sleeve (mandatory before deployment)
O-ring seals	Nitrile
Cable jacket	Polyurethane (PUR) or Synthetic Rubber — customer-specified OD

Cable plug · 6-contact

Male5501-1506

Male · 5501-1506. Cable plug form with 6 contacts for the 55 Series.

Technical specifications

Parameter	Value
Model number	5501-1506
Connector series	Burton-Compatible 55 Series
Configuration	CCP
Shell size	15
Number of contacts / channels	6
Voltage rating	600 V DC/AC rms
Current per contact	10 A per contact
Maximum total current	20 A (2-3 pin) / 10 A (4+ pin)
Insulation resistance	>200 MΩ
Contact resistance	<0.01 Ω
Mated pressure rating	690 Bar (10,000 psi)
Open-face pressure rating	480 Bar (7,000 psi)
Wet / dry matings	>500 cycles
Temperature rating (water)	−4°C to +60°C
Temperature rating (air)	−40°C to +60°C
Connector body material	Chloroprene rubber
Shell / housing material	316 Stainless Steel (Titanium on request)
Contacts	Gold-plated brass (female) / Gold-plated beryllium copper (male)
Locking mechanism	POM or Stainless Steel locking sleeve (mandatory before deployment)
O-ring seals	Nitrile
Cable jacket	Polyurethane (PUR) or Synthetic Rubber — customer-specified OD

Cable plug · 8-contact

Male5501-1508

Male · 5501-1508. Cable plug form with 8 contacts for the 55 Series.

Technical specifications

Parameter	Value
Model number	5501-1508
Connector series	Burton-Compatible 55 Series
Configuration	CCP
Shell size	15
Number of contacts / channels	8
Voltage rating	600 V DC/AC rms
Current per contact	10 A per contact
Maximum total current	20 A (2-3 pin) / 10 A (4+ pin)
Insulation resistance	>200 MΩ
Contact resistance	<0.01 Ω
Mated pressure rating	690 Bar (10,000 psi)
Open-face pressure rating	480 Bar (7,000 psi)
Wet / dry matings	>500 cycles
Temperature rating (water)	−4°C to +60°C
Temperature rating (air)	−40°C to +60°C
Connector body material	Chloroprene rubber
Shell / housing material	316 Stainless Steel (Titanium on request)
Contacts	Gold-plated brass (female) / Gold-plated beryllium copper (male)
Locking mechanism	POM or Stainless Steel locking sleeve (mandatory before deployment)
O-ring seals	Nitrile
Cable jacket	Polyurethane (PUR) or Synthetic Rubber — customer-specified OD

Dummy / protective · 8-contact

Male5501-1508

Male · 5501-1508. Dummy / protective form with 8 contacts for the 55 Series.

Technical specifications

Parameter	Value
Model number	5501-1508-DUM
Connector series	Burton-Compatible 55 Series
Configuration	Dummy
Shell size	15
Number of contacts / channels	8
Voltage rating	600 V DC/AC rms
Current per contact	10 A per contact
Maximum total current	20 A (2-3 pin) / 10 A (4+ pin)
Insulation resistance	>200 MΩ
Contact resistance	<0.01 Ω
Mated pressure rating	690 Bar (10,000 psi)
Open-face pressure rating	480 Bar (7,000 psi)
Wet / dry matings	>500 cycles
Temperature rating (water)	−4°C to +60°C
Temperature rating (air)	−40°C to +60°C
Connector body material	Chloroprene rubber
Shell / housing material	316 Stainless Steel (Titanium on request)
Contacts	Gold-plated brass (female) / Gold-plated beryllium copper (male)
Locking mechanism	POM or Stainless Steel locking sleeve (mandatory before deployment)
O-ring seals	Nitrile
Cable jacket	Polyurethane (PUR) or Synthetic Rubber — customer-specified OD

Bulkhead · 8-contact

Male5507-1508

Male · 5507-1508. Bulkhead form with 8 contacts for the 55 Series.

Technical specifications

Parameter	Value
Model number	5507-1508
Connector series	Burton-Compatible 55 Series
Configuration	BCR
Shell size	15
Number of contacts / channels	8
Voltage rating	600 V DC/AC rms
Current per contact	10 A per contact
Maximum total current	20 A (2-3 pin) / 10 A (4+ pin)
Insulation resistance	>200 MΩ
Contact resistance	<0.01 Ω
Mated pressure rating	690 Bar (10,000 psi)
Open-face pressure rating	480 Bar (7,000 psi)
Wet / dry matings	>500 cycles
Temperature rating (water)	−4°C to +60°C
Temperature rating (air)	−40°C to +60°C
Connector body material	Chloroprene rubber
Shell / housing material	316 Stainless Steel (Titanium on request)
Contacts	Gold-plated brass (female) / Gold-plated beryllium copper (male)
Locking mechanism	POM or Stainless Steel locking sleeve (mandatory before deployment)
O-ring seals	Nitrile
Cable jacket	Polyurethane (PUR) or Synthetic Rubber — customer-specified OD

Flange · 8-contact

Male5506-1508

Male · 5506-1508. Flange form with 8 contacts for the 55 Series.

Technical specifications

Parameter	Value
Model number	5506-1508
Connector series	Burton-Compatible 55 Series
Configuration	FCR
Shell size	15
Number of contacts / channels	8
Voltage rating	600 V DC/AC rms
Current per contact	10 A per contact
Maximum total current	20 A (2-3 pin) / 10 A (4+ pin)
Insulation resistance	>200 MΩ
Contact resistance	<0.01 Ω
Mated pressure rating	690 Bar (10,000 psi)
Open-face pressure rating	480 Bar (7,000 psi)
Wet / dry matings	>500 cycles
Temperature rating (water)	−4°C to +60°C
Temperature rating (air)	−40°C to +60°C
Connector body material	Chloroprene rubber
Shell / housing material	316 Stainless Steel (Titanium on request)
Contacts	Gold-plated brass (female) / Gold-plated beryllium copper (male)
Locking mechanism	POM or Stainless Steel locking sleeve (mandatory before deployment)
O-ring seals	Nitrile
Cable jacket	Polyurethane (PUR) or Synthetic Rubber — customer-specified OD

Connector · 8-contact

Male55P1-1508

Male · 55P1-1508. Connector form with 8 contacts for the 55 Series.

Technical specifications

Parameter	Value
Model number	55P1-1508
Connector series	Burton-Compatible 55 Series
Configuration	PBOF
Shell size	15
Number of contacts / channels	8
Voltage rating	600 V DC/AC rms
Current per contact	10 A per contact
Maximum total current	20 A (2-3 pin) / 10 A (4+ pin)
Insulation resistance	>200 MΩ
Contact resistance	<0.01 Ω
Mated pressure rating	690 Bar (10,000 psi)
Open-face pressure rating	480 Bar (7,000 psi)
Wet / dry matings	>500 cycles
Temperature rating (water)	−4°C to +60°C
Temperature rating (air)	−40°C to +60°C
Connector body material	Chloroprene rubber
Shell / housing material	316 Stainless Steel (Titanium on request)
Contacts	Gold-plated brass (female) / Gold-plated beryllium copper (male)
Locking mechanism	POM or Stainless Steel locking sleeve (mandatory before deployment)
O-ring seals	Nitrile
Cable jacket	Polyurethane (PUR) or Synthetic Rubber — customer-specified OD

Right-angle · 8-contact

Female55R1-1508

Female · 55R1-1508. Right-angle form with 8 contacts for the 55 Series.

Technical specifications

Parameter	Value
Model number	55R1-1508
Connector series	Burton-Compatible 55 Series
Configuration	RA
Shell size	15
Number of contacts / channels	8
Voltage rating	600 V DC/AC rms
Current per contact	10 A per contact
Maximum total current	20 A (2-3 pin) / 10 A (4+ pin)
Insulation resistance	>200 MΩ
Contact resistance	<0.01 Ω
Mated pressure rating	690 Bar (10,000 psi)
Open-face pressure rating	480 Bar (7,000 psi)
Wet / dry matings	>500 cycles
Temperature rating (water)	−4°C to +60°C
Temperature rating (air)	−40°C to +60°C
Connector body material	Chloroprene rubber
Shell / housing material	316 Stainless Steel (Titanium on request)
Contacts	Gold-plated brass (female) / Gold-plated beryllium copper (male)
Locking mechanism	POM or Stainless Steel locking sleeve (mandatory before deployment)
O-ring seals	Nitrile
Cable jacket	Polyurethane (PUR) or Synthetic Rubber — customer-specified OD

Cable plug · 8-contact

Male5501-2008

Male · 5501-2008. Cable plug form with 8 contacts for the 55 Series.

Technical specifications

Parameter	Value
Model number	5501-2008
Connector series	Burton-Compatible 55 Series
Configuration	CCP
Shell size	20
Number of contacts / channels	8
Voltage rating	600 V DC/AC rms
Current per contact	10 A per contact
Maximum total current	30 A
Insulation resistance	>200 MΩ
Contact resistance	<0.01 Ω
Mated pressure rating	690 Bar (10,000 psi)
Open-face pressure rating	480 Bar (7,000 psi)
Wet / dry matings	>500 cycles
Temperature rating (water)	−4°C to +60°C
Temperature rating (air)	−40°C to +60°C
Connector body material	Chloroprene rubber
Shell / housing material	316 Stainless Steel (Titanium on request)
Contacts	Gold-plated brass (female) / Gold-plated beryllium copper (male)
Locking mechanism	POM or Stainless Steel locking sleeve (mandatory before deployment)
O-ring seals	Nitrile
Cable jacket	Polyurethane (PUR) or Synthetic Rubber — customer-specified OD

In-line · 12-contact

Male5501-2412

Male · 5501-2412. In-line form with 12 contacts for the 55 Series.

Technical specifications

Parameter	Value
Model number	5501-2412
Connector series	Burton-Compatible 55 Series
Configuration	CCP
Shell size	24
Number of contacts / channels	12
Voltage rating	600 V DC/AC rms
Current per contact	5 A per contact
Maximum total current	60 A
Insulation resistance	>200 MΩ
Contact resistance	<0.01 Ω
Mated pressure rating	690 Bar (10,000 psi)
Open-face pressure rating	480 Bar (7,000 psi)
Wet / dry matings	>500 cycles
Temperature rating (water)	−4°C to +60°C
Temperature rating (air)	−40°C to +60°C
Connector body material	Chloroprene rubber
Shell / housing material	316 Stainless Steel (Titanium on request)
Contacts	Gold-plated brass (female) / Gold-plated beryllium copper (male)
Locking mechanism	POM or Stainless Steel locking sleeve (mandatory before deployment)
O-ring seals	Nitrile
Cable jacket	Polyurethane (PUR) or Synthetic Rubber — customer-specified OD

Bulkhead · 8-contact

Male5507-2008

Male · 5507-2008. Bulkhead form with 8 contacts for the 55 Series.

Technical specifications

Parameter	Value
Model number	5507-2008
Connector series	Burton-Compatible 55 Series
Configuration	BCR
Shell size	20
Number of contacts / channels	8
Voltage rating	600 V DC/AC rms
Current per contact	10 A per contact
Maximum total current	30 A
Insulation resistance	>200 MΩ
Contact resistance	<0.01 Ω
Mated pressure rating	690 Bar (10,000 psi)
Open-face pressure rating	480 Bar (7,000 psi)
Wet / dry matings	>500 cycles
Temperature rating (water)	−4°C to +60°C
Temperature rating (air)	−40°C to +60°C
Connector body material	Chloroprene rubber
Shell / housing material	316 Stainless Steel (Titanium on request)
Contacts	Gold-plated brass (female) / Gold-plated beryllium copper (male)
Locking mechanism	POM or Stainless Steel locking sleeve (mandatory before deployment)
O-ring seals	Nitrile
Cable jacket	Polyurethane (PUR) or Synthetic Rubber — customer-specified OD

In-line · 13-contact

Connector form5501-2013

5501-2013. In-line form with 13 contacts for the 55 Series.

Technical specifications

Parameter	Value
Model number	5501-2013-ETH
Connector series	Burton-Compatible 55 Series
Configuration	Ethernet
Shell size	20
Number of contacts / channels	13
Voltage rating	600 V DC/AC rms
Current per contact	10 A per contact
Maximum total current	30 A
Insulation resistance	>200 MΩ
Contact resistance	<0.01 Ω
Mated pressure rating	690 Bar (10,000 psi)
Open-face pressure rating	480 Bar (7,000 psi)
Wet / dry matings	>500 cycles
Temperature rating (water)	−4°C to +60°C
Temperature rating (air)	−40°C to +60°C
Connector body material	Chloroprene rubber
Shell / housing material	316 Stainless Steel (Titanium on request)
Contacts	Gold-plated brass (female) / Gold-plated beryllium copper (male)
Locking mechanism	POM or Stainless Steel locking sleeve (mandatory before deployment)
O-ring seals	Nitrile
Cable jacket	Polyurethane (PUR) or Synthetic Rubber — customer-specified OD

In-line · 13-contact

Male5501-2013

Male · 5501-2013. In-line form with 13 contacts for the 55 Series.

Technical specifications

Parameter	Value
Model number	5501-2013
Connector series	Burton-Compatible 55 Series
Configuration	CCP
Shell size	20
Number of contacts / channels	13
Voltage rating	600 V DC/AC rms
Current per contact	10 A per contact
Maximum total current	30 A
Insulation resistance	>200 MΩ
Contact resistance	<0.01 Ω
Mated pressure rating	690 Bar (10,000 psi)
Open-face pressure rating	480 Bar (7,000 psi)
Wet / dry matings	>500 cycles
Temperature rating (water)	−4°C to +60°C
Temperature rating (air)	−40°C to +60°C
Connector body material	Chloroprene rubber
Shell / housing material	316 Stainless Steel (Titanium on request)
Contacts	Gold-plated brass (female) / Gold-plated beryllium copper (male)
Locking mechanism	POM or Stainless Steel locking sleeve (mandatory before deployment)
O-ring seals	Nitrile
Cable jacket	Polyurethane (PUR) or Synthetic Rubber — customer-specified OD

Flange · 13-contact

Male5506-2013

Male · 5506-2013. Flange form with 13 contacts for the 55 Series.

Technical specifications

Parameter	Value
Model number	5506-2013
Connector series	Burton-Compatible 55 Series
Configuration	FCR
Shell size	20
Number of contacts / channels	13
Voltage rating	600 V DC/AC rms
Current per contact	10 A per contact
Maximum total current	30 A
Insulation resistance	>200 MΩ
Contact resistance	<0.01 Ω
Mated pressure rating	690 Bar (10,000 psi)
Open-face pressure rating	480 Bar (7,000 psi)
Wet / dry matings	>500 cycles
Temperature rating (water)	−4°C to +60°C
Temperature rating (air)	−40°C to +60°C
Connector body material	Chloroprene rubber
Shell / housing material	316 Stainless Steel (Titanium on request)
Contacts	Gold-plated brass (female) / Gold-plated beryllium copper (male)
Locking mechanism	POM or Stainless Steel locking sleeve (mandatory before deployment)
O-ring seals	Nitrile
Cable jacket	Polyurethane (PUR) or Synthetic Rubber — customer-specified OD

Bulkhead · 21-contact

Male5507-2021

Male · 5507-2021. Bulkhead form with 21 contacts for the 55 Series.

Technical specifications

Parameter	Value
Model number	5507-2021
Connector series	Burton-Compatible 55 Series
Configuration	BCR
Shell size	20
Number of contacts / channels	21
Voltage rating	600 V DC/AC rms
Current per contact	10 A per contact
Maximum total current	30 A
Insulation resistance	>200 MΩ
Contact resistance	<0.01 Ω
Mated pressure rating	690 Bar (10,000 psi)
Open-face pressure rating	480 Bar (7,000 psi)
Wet / dry matings	>500 cycles
Temperature rating (water)	−4°C to +60°C
Temperature rating (air)	−40°C to +60°C
Connector body material	Chloroprene rubber
Shell / housing material	316 Stainless Steel (Titanium on request)
Contacts	Gold-plated brass (female) / Gold-plated beryllium copper (male)
Locking mechanism	POM or Stainless Steel locking sleeve (mandatory before deployment)
O-ring seals	Nitrile
Cable jacket	Polyurethane (PUR) or Synthetic Rubber — customer-specified OD

In-line · 21-contact

Male5501-2021

Male · 5501-2021. In-line form with 21 contacts for the 55 Series.

Technical specifications

Parameter	Value
Model number	5501-2021
Connector series	Burton-Compatible 55 Series
Configuration	CCP
Shell size	20
Number of contacts / channels	21
Voltage rating	600 V DC/AC rms
Current per contact	10 A per contact
Maximum total current	30 A
Insulation resistance	>200 MΩ
Contact resistance	<0.01 Ω
Mated pressure rating	690 Bar (10,000 psi)
Open-face pressure rating	480 Bar (7,000 psi)
Wet / dry matings	>500 cycles
Temperature rating (water)	−4°C to +60°C
Temperature rating (air)	−40°C to +60°C
Connector body material	Chloroprene rubber
Shell / housing material	316 Stainless Steel (Titanium on request)
Contacts	Gold-plated brass (female) / Gold-plated beryllium copper (male)
Locking mechanism	POM or Stainless Steel locking sleeve (mandatory before deployment)
O-ring seals	Nitrile
Cable jacket	Polyurethane (PUR) or Synthetic Rubber — customer-specified OD

Flange · 26-contact

Connector formMINM-FCR

MINM-FCR. Flange form with 26 contacts for the 55 Series.

Technical specifications

Parameter	Value
Model number	MINM-FCR
Connector series	SEACON MIN-M Compatible Series
Configuration	FCR
Shell size	M
Number of contacts / channels	26
Voltage rating	600 V DC/AC rms
Current per contact	5 A per contact
Maximum total current	130 A (26 pin total)
Insulation resistance	>200 MΩ
Contact resistance	<0.01 Ω
Mated pressure rating	690 Bar (10,000 psi)
Open-face pressure rating	480 Bar (7,000 psi)
Wet / dry matings	>500 cycles
Temperature rating (water)	−4°C to +60°C
Temperature rating (air)	−40°C to +60°C
Connector body material	Chloroprene rubber
Shell / housing material	316 Stainless Steel (Titanium on request)
Contacts	Gold-plated brass (female) / Gold-plated beryllium copper (male)
Locking mechanism	POM or Stainless Steel locking sleeve (mandatory before deployment)
O-ring seals	Nitrile
Cable jacket	Polyurethane (PUR) or Synthetic Rubber — customer-specified OD

In-line · 26-contact

Connector formMINM

MINM. In-line form with 26 contacts for the 55 Series.

Technical specifications

Parameter	Value
Model number	MINM-CCP
Connector series	SEACON MIN-M Compatible Series
Configuration	CCP
Shell size	M
Number of contacts / channels	26
Voltage rating	600 V DC/AC rms
Current per contact	5 A per contact
Maximum total current	130 A (26 pin total)
Insulation resistance	>200 MΩ
Contact resistance	<0.01 Ω
Mated pressure rating	690 Bar (10,000 psi)
Open-face pressure rating	480 Bar (7,000 psi)
Wet / dry matings	>500 cycles
Temperature rating (water)	−4°C to +60°C
Temperature rating (air)	−40°C to +60°C
Connector body material	Chloroprene rubber
Shell / housing material	316 Stainless Steel (Titanium on request)
Contacts	Gold-plated brass (female) / Gold-plated beryllium copper (male)
Locking mechanism	POM or Stainless Steel locking sleeve (mandatory before deployment)
O-ring seals	Nitrile
Cable jacket	Polyurethane (PUR) or Synthetic Rubber — customer-specified OD

In-line · 9-contact

Connector formCS-MS-J-09-CCP

CS-MS-J-09-CCP. In-line form with 9 contacts for the 55 Series.

Technical specifications

Parameter	Value
Model number	CS-MS-J-09-CCP
Connector series	SEACON CS-MS Compatible Series
Configuration	CCP
Shell size	09
Number of contacts / channels	9
Voltage rating	600 V DC/AC rms
Current per contact	10 A per contact
Maximum total current	90 A (9 pin total)
Insulation resistance	>200 MΩ
Contact resistance	<0.01 Ω
Mated pressure rating	690 Bar (10,000 psi)
Open-face pressure rating	Dry-mate — rated for dry coupling only
Wet / dry matings	>500 cycles
Temperature rating (water)	−4°C to +60°C
Temperature rating (air)	−40°C to +60°C
Connector body material	Chloroprene rubber
Shell / housing material	316 Stainless Steel (Titanium on request)
Contacts	Gold-plated brass (female) / Gold-plated beryllium copper (male)
Locking mechanism	POM or Stainless Steel locking sleeve (mandatory before deployment)
O-ring seals	Nitrile
Cable jacket	Polyurethane (PUR) or Synthetic Rubber — customer-specified OD

Connector · 2-contact

FemaleIE2F

MaleIE2M

Female · IE2F. Connector form with 2 contacts for the 55 Series.

Male · IE2M. Connector form with 2 contacts for the 55 Series.

Technical specifications

Parameter	Female IE2F	Male IE2M
Model number	IE2F	IE2M
Connector series	IE-Series EO Underwater Connectors
Configuration	EO-plug
Shell size	—	—
Number of contacts / channels	2
Fibre channels	2
Fibre type compatibility	SM 9/125 µm; MM 50/125 µm; MM 62.5/125 µm
Typical insertion loss	<0.5 dB per channel
Return loss	>40 dB
Data rate	Up to 10 Gbit/s (SM); 1 Gbit/s (MM)
Voltage rating	N/A (optical only)
Current rating	N/A (optical only)
Mated pressure rating	300 Bar (4,350 psi)
Open-face pressure rating	—	—
Wet / dry matings	>500 cycles
Temperature rating (water)	−4°C to +60°C
Temperature rating (air)	−40°C to +60°C
Connector body material	Chloroprene rubber
Shell / housing material	316 Stainless Steel (Titanium on request)
Contacts	Gold-plated brass (female) / Gold-plated beryllium copper (male)
Locking mechanism	POM or Stainless Steel locking sleeve (mandatory before deployment)
O-ring seals	Nitrile
Cable jacket	Polyurethane (PUR) or Synthetic Rubber — customer-specified OD

Connector · 2-contact

MaleIE2M-BC

Male · IE2M-BC. Connector form with 2 contacts for the 55 Series.

Technical specifications

Parameter	Value
Model number	IE2M-BC
Connector series	IE-Series EO Underwater Connectors
Configuration	EO-bcr
Shell size	—
Number of contacts / channels	2
Fibre channels	2
Fibre type compatibility	SM 9/125 µm; MM 50/125 µm; MM 62.5/125 µm
Typical insertion loss	<0.5 dB per channel
Return loss	>40 dB
Data rate	Up to 10 Gbit/s (SM); 1 Gbit/s (MM)
Voltage rating	N/A (optical only)
Current rating	N/A (optical only)
Mated pressure rating	300 Bar (4,350 psi)
Open-face pressure rating	—
Wet / dry matings	>500 cycles
Temperature rating (water)	−4°C to +60°C
Temperature rating (air)	−40°C to +60°C
Connector body material	Chloroprene rubber
Shell / housing material	316 Stainless Steel (Titanium on request)
Contacts	Gold-plated brass (female) / Gold-plated beryllium copper (male)
Locking mechanism	POM or Stainless Steel locking sleeve (mandatory before deployment)
O-ring seals	Nitrile
Cable jacket	Polyurethane (PUR) or Synthetic Rubber — customer-specified OD

Connector · 2-contact

FemaleIE2F-BC

Female · IE2F-BC. Connector form with 2 contacts for the 55 Series.

Technical specifications

Parameter	Value
Model number	IE2F-BC
Connector series	IE-Series EO Underwater Connectors
Configuration	EO-bcr
Shell size	—
Number of contacts / channels	2
Fibre channels	2
Fibre type compatibility	SM 9/125 µm; MM 50/125 µm; MM 62.5/125 µm
Typical insertion loss	<0.5 dB per channel
Return loss	>40 dB
Data rate	Up to 10 Gbit/s (SM); 1 Gbit/s (MM)
Voltage rating	N/A (optical only)
Current rating	N/A (optical only)
Mated pressure rating	300 Bar (4,350 psi)
Open-face pressure rating	—
Wet / dry matings	>500 cycles
Temperature rating (water)	−4°C to +60°C
Temperature rating (air)	−40°C to +60°C
Connector body material	Chloroprene rubber
Shell / housing material	316 Stainless Steel (Titanium on request)
Contacts	Gold-plated brass (female) / Gold-plated beryllium copper (male)
Locking mechanism	POM or Stainless Steel locking sleeve (mandatory before deployment)
O-ring seals	Nitrile
Cable jacket	Polyurethane (PUR) or Synthetic Rubber — customer-specified OD

Connector · 4-contact

FemaleIEB4F

MaleIEB4M

Female · IEB4F. Connector form with 4 contacts for the 55 Series.

Male · IEB4M. Connector form with 4 contacts for the 55 Series.

Technical specifications

Parameter	Female IEB4F	Male IEB4M
Model number	IEB4F	IEB4M
Connector series	IE-Series EO Underwater Connectors
Configuration	EO-plug
Shell size	—	—
Number of contacts / channels	4
Fibre channels	4
Fibre type compatibility	SM 9/125 µm; MM 50/125 µm; MM 62.5/125 µm
Typical insertion loss	<0.5 dB per channel
Return loss	>40 dB
Data rate	Up to 10 Gbit/s (SM); 1 Gbit/s (MM)
Voltage rating	N/A (optical only)
Current rating	N/A (optical only)
Mated pressure rating	300 Bar (4,350 psi)
Open-face pressure rating	—	—
Wet / dry matings	>500 cycles
Temperature rating (water)	−4°C to +60°C
Temperature rating (air)	−40°C to +60°C
Connector body material	Chloroprene rubber
Shell / housing material	316 Stainless Steel (Titanium on request)
Contacts	Gold-plated brass (female) / Gold-plated beryllium copper (male)
Locking mechanism	POM or Stainless Steel locking sleeve (mandatory before deployment)
O-ring seals	Nitrile
Cable jacket	Polyurethane (PUR) or Synthetic Rubber — customer-specified OD

Cable assembly

FemaleMCIL8F / 55R1-1508

Female · MCIL8F / 55R1-1508. Cable assembly form for the 55 Series.

Technical specifications

Parameter	Value
Model number	MCIL8F+MCDLSF
Connector series	Subsea Cable Assembly Series
Configuration	Cable
Shell size	—
Number of contacts / channels	8
Voltage rating	600 V DC/AC rms
Current per contact	10 A per contact
Maximum total current	—
Insulation resistance	>200 MΩ
Contact resistance	<0.01 Ω
Mated pressure rating	690 Bar (10,000 psi)
Open-face pressure rating	480 Bar (7,000 psi)
Wet / dry matings	>500 cycles
Temperature rating (water)	−4°C to +60°C
Temperature rating (air)	−40°C to +60°C
Connector body material	Chloroprene rubber
Shell / housing material	316 Stainless Steel (Titanium on request)
Contacts	Gold-plated brass (female) / Gold-plated beryllium copper (male)
Locking mechanism	POM or Stainless Steel locking sleeve (mandatory before deployment)
O-ring seals	Nitrile
Cable jacket	Polyurethane (PUR) or Synthetic Rubber — customer-specified OD

Cable assembly

Connector form86-5

86-5. Cable assembly form for the 55 Series.

Technical specifications

Parameter	Value
Model number	865MC
Connector series	Subsea Cable Assembly Series
Configuration	Pigtail
Shell size	—
Number of contacts / channels	8
Voltage rating	600 V DC/AC rms
Current per contact	10 A per contact
Maximum total current	—
Insulation resistance	>200 MΩ
Contact resistance	<0.01 Ω
Mated pressure rating	690 Bar (10,000 psi)
Open-face pressure rating	480 Bar (7,000 psi)
Wet / dry matings	>500 cycles
Temperature rating (water)	−4°C to +60°C
Temperature rating (air)	−40°C to +60°C
Connector body material	Chloroprene rubber
Shell / housing material	316 Stainless Steel (Titanium on request)
Contacts	Gold-plated brass (female) / Gold-plated beryllium copper (male)
Locking mechanism	POM or Stainless Steel locking sleeve (mandatory before deployment)
O-ring seals	Nitrile
Cable jacket	Polyurethane (PUR) or Synthetic Rubber — customer-specified OD

Cable assembly

Connector formLPMBH-7-MP

LPMBH-7-MP. Cable assembly form for the 55 Series.

Technical specifications

Parameter	Value
Model number	LPMBH-7-MP
Connector series	Subsea Cable Assembly Series
Configuration	BH
Shell size	—
Number of contacts / channels	7
Voltage rating	600 V DC/AC rms
Current per contact	10 A per contact
Maximum total current	—
Insulation resistance	>200 MΩ
Contact resistance	<0.01 Ω
Mated pressure rating	690 Bar (10,000 psi)
Open-face pressure rating	480 Bar (7,000 psi)
Wet / dry matings	>500 cycles
Temperature rating (water)	−4°C to +60°C
Temperature rating (air)	−40°C to +60°C
Connector body material	Chloroprene rubber
Shell / housing material	316 Stainless Steel (Titanium on request)
Contacts	Gold-plated brass (female) / Gold-plated beryllium copper (male)
Locking mechanism	POM or Stainless Steel locking sleeve (mandatory before deployment)
O-ring seals	Nitrile
Cable jacket	Polyurethane (PUR) or Synthetic Rubber — customer-specified OD

In-line · 19-contact

FemaleMINK-CCP

Female · MINK-CCP. In-line form with 19 contacts for the 55 Series.

Technical specifications

Parameter	Value
Model number	MINK-CCP
Connector series	MINI-Con MINK Series
Configuration	CCP
Shell size	—
Number of contacts / channels	19
Voltage rating	300 V DC/AC rms
Current per contact	3 A per contact
Maximum total current	57 A (19 pin total)
Insulation resistance	>200 MΩ
Contact resistance	<0.01 Ω
Mated pressure rating	600 Bar (8,700 psi)
Open-face pressure rating	400 Bar (5,800 psi)
Wet / dry matings	>500 cycles
Temperature rating (water)	−4°C to +60°C
Temperature rating (air)	−40°C to +60°C
Connector body material	Chloroprene rubber
Shell / housing material	316 Stainless Steel (Titanium on request)
Contacts	Gold-plated brass (female) / Gold-plated beryllium copper (male)
Locking mechanism	POM or Stainless Steel locking sleeve (mandatory before deployment)
O-ring seals	Nitrile
Cable jacket	Polyurethane (PUR) or Synthetic Rubber — customer-specified OD

Technical documents

Cable and mounting forms · 5501, 5506 and 5507PDF page 54

Plug and right-angle forms · 5501, 5502 and 55R1PDF page 55

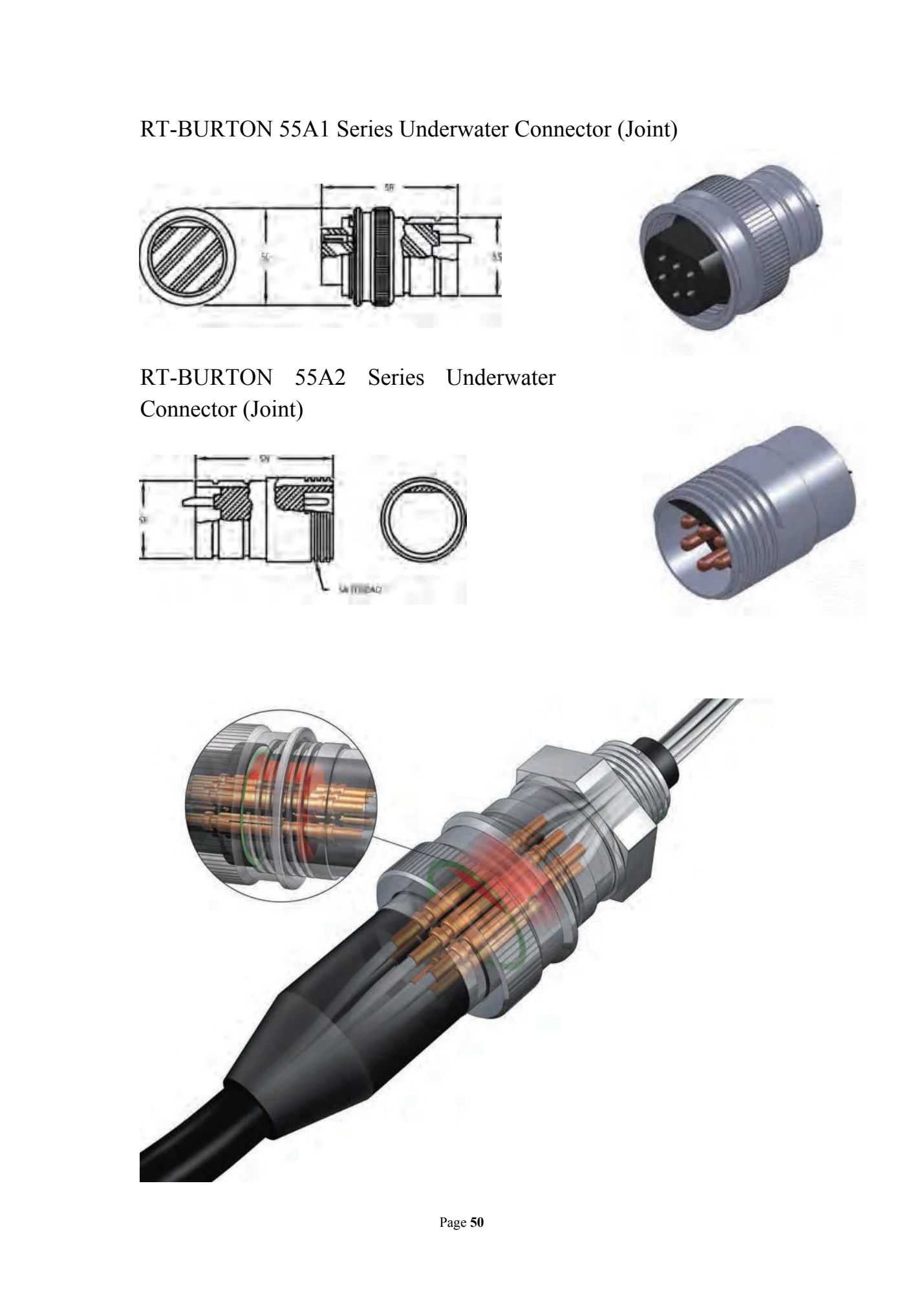

Joint forms · 55A1 and 55A2PDF page 56

Part numbers, contact layouts and installation dataPDF page 57–59

Voltage codes, shell sizes, terminal counts and cable length form part of the catalogue ordering reference. Confirm the required assembly with MARE.

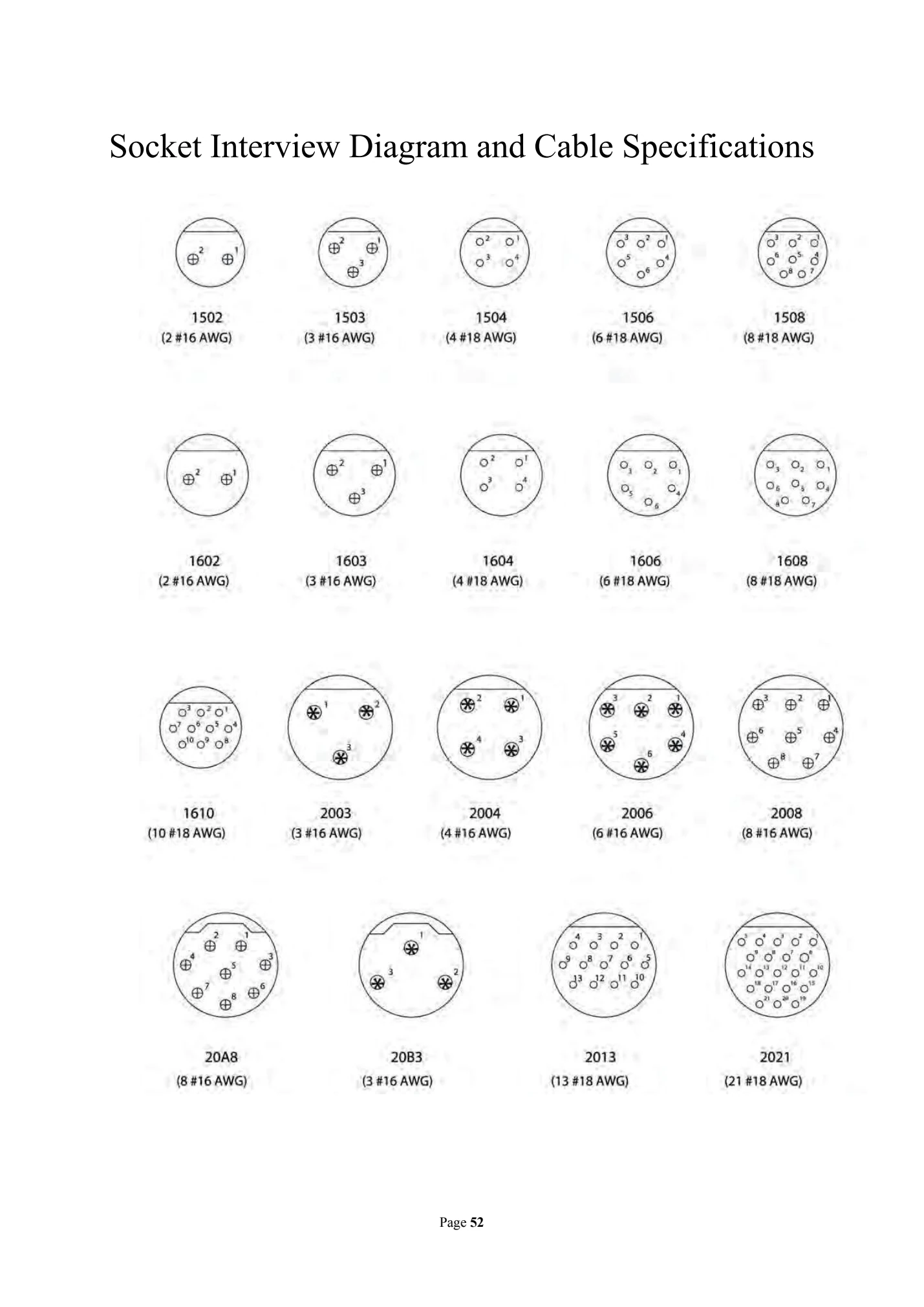

Part numbers, contact layouts and installation data · PDF page 58 — PDF page 58

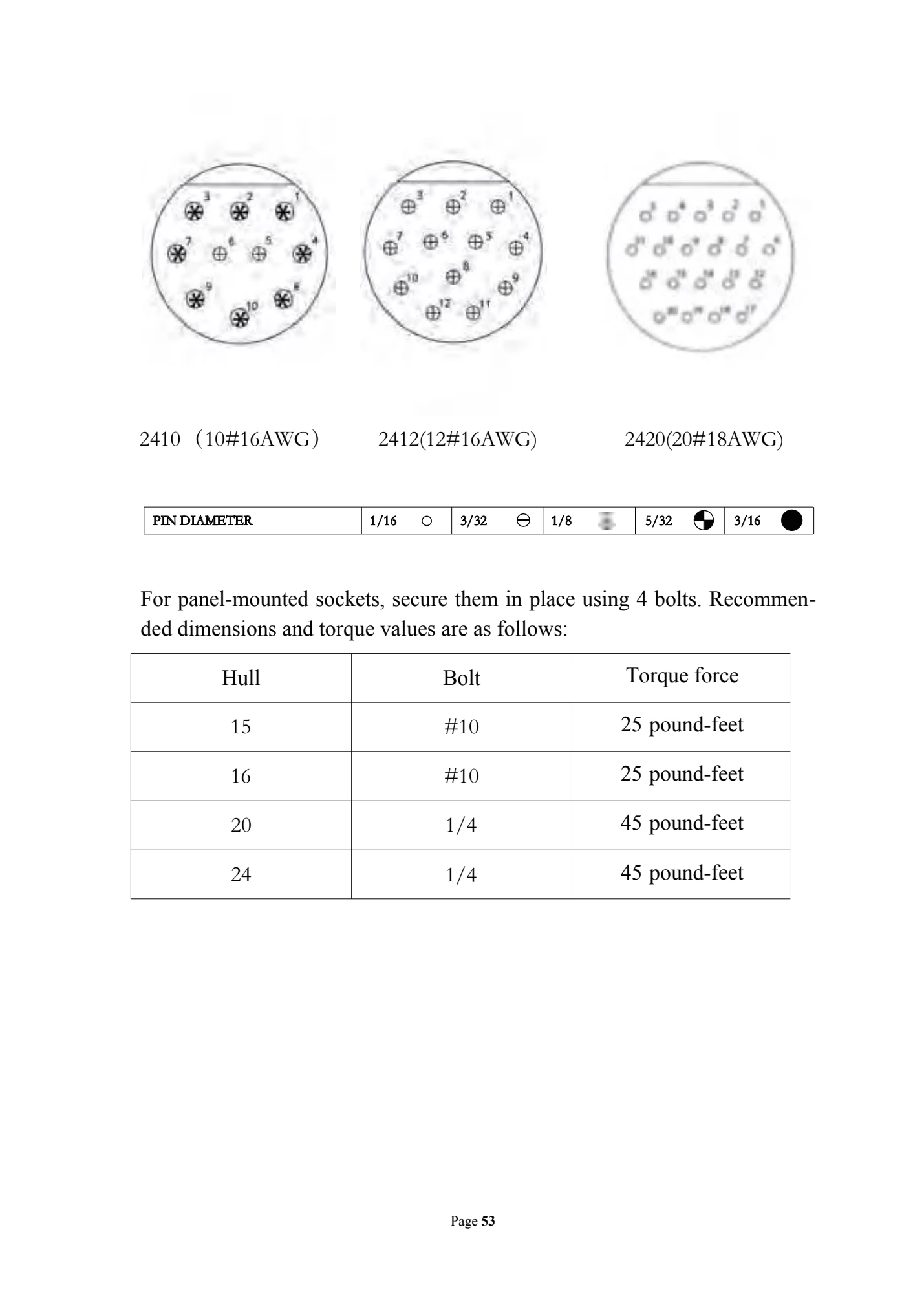

Part numbers, contact layouts and installation data · PDF page 59 — PDF page 59
